X6

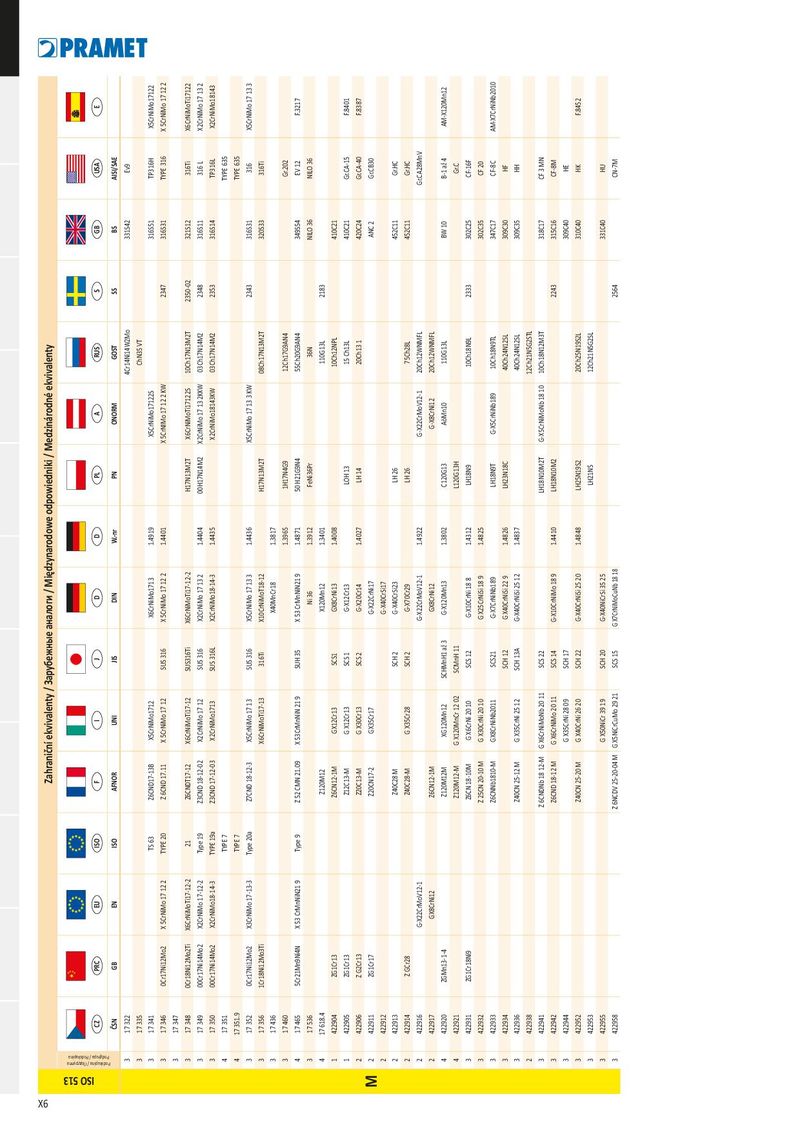

Zahraniční ekvivalenty / Зарубежные аналоги / Międzynarodowe odpowiedniki / Medzinárodné ekvivalenty
ISO 513
CZ PRC EU ISO F I J D D PL A RUS S GB USA E
Podgrupa / Podskupina
Podskupina / Подгруппа
ČSN GB EN ISO AFNOR UNI JIS DIN W.-nr PN ONORM GOST SS BS AISI/SAE
3 17 322 4Cr14Ni14W2Mo 331S42 Ev9
3 17 335 ChN35 VT
3 17 341 TS 63 Z6CND17-13B X5CrNiMo1712 X6CrNiMo1713 1.4919 X5CrNiMo17122S 316S51 TP316H X5CrNiMo17122
3 17 346 0Cr17Ni12Mo2 X 5CrNiMo 17 12 2 TYPE 20 Z 6CND 17.11 X 5CrNiMo 17 12 SUS 316 X 5CrNiMo 17 12 2 1.4401 X 5CrNIMo 17 12 2 KW 2347 316S31 TYPE 316 X 5CrNiMo 17 12 2
3 17 347
3 17 348 0Cr18Ni12Mo2Ti X6CrNiMoTi17-12-2 21 Z6CNDT17-12 X6CrNiMoTi17-12 SUS316Ti X6CrNiMoTi17-12-2 H17N13M2T X6CrNiMoTi17122S 10Ch17N13M2T 2350-02 321S12 316Ti X6CrNiMoTi17122
3 17 349 00Cr17Ni14Mo2 X2CrNiMo 17-12-2 Type 19 Z3CND 18-12-02 X2CrNiMo 17 12 SUS 316 X2CrNiMo 17 13 2 1.4404 00H17N14M2 X2CrNiMo 17 13 2KKW 03Ch17N14M2 2348 316S11 316 L X2CrNiMo 17 13 2
3 17 350 00Cr17Ni14Mo2 X2CrNiMo18-14-3 TYPE 19a Z3CND 17-12-03 X2CrNiMo1713 SUS 316L X2CrNiMo18-14-3 1.4435 X2CrNiMo18143KW 03Ch17N14M2 2353 316S14 TP316L X2CrNiMo18143
4 17 351 TYPE 7 TYPE 635
4 17 351.9 TYPE 7 TYPE 635
3 17 352 0Cr17Ni12Mo2 X3CrNiMo 17-13-3 Type 20a Z7CND 18-12-3 X5CrNiMo 17 13 SUS 316 X5CrNiMo 17 13 3 1.4436 X5CrNiMo 17 13 3 KW 2343 316S31 316 X5CrNiMo 17 13 3
3 17 356 1Cr18Ni12Mo3Ti X6CrNiMoTi17-13 316Ti X10CrNiMoT18-12 H17N13M2T 08Ch17N13M2T 320S33 316Ti
3 17 436 X40MnCr18 1.3817
3 17 460 1.3965 1H17N4G9 12Ch17G9AN4 Gr.202
4 17 465 5Cr21Mn9Ni4N X 53 CrMnNiN21 9 Type 9 Z 52 CMN 21.09 X 53CrMnNiN 21 9 SUH 35 X 53 CrMnNiN21 9 1.4871 50 H21G9N4 55Ch20G9AN4 349S54 EV 12 F.3217
3 17 536 Ni 36 1.3912 FeNi36Pr 36N NILO 36 NILO 36
4 17 618.4 Z120M12 X120Mn12 1.3401 110G13L 2183
1 422904 ZG1Cr13 Z6CN12-1M GX12Cr13 SCS1 GX8CrNi13 1.4008 10Ch12NPL 410C21
1 422905 ZG1Cr13 Z12C13-M G X12Cr13 SCS 1 G-X12Cr13 LOH 13 15 Ch13L 410C21 Gr.CA-15 F.8401
2 422906 Z G2Cr13 Z20C13-M G X30Cr13 SCS 2 G-X20Cr14 1.4027 LH 14 20Ch13 1 420C24 Gr.CA-40 F.8387
M 2 422911 ZG1Cr17 Z20CN17-2 GX35Cr17 G-X22CrNi17 ANC 2 Gr.CB30
2 422912 G-X40CrSi17
2 422913 Z40C28 M SCH 2 G-X40CrSi23 LH 26 452C11 Gr.HC
2 422914 Z GCr28 Z40C28-M G X35Cr28 SCH 2 G-X70Cr29 LH 26 75Ch28L 452C11 Gr.HC
2 422916 G-X22CrMoV12-1 G-X22CrMoV12-1 1.4922 G-X22CrMoV12-1 20Ch12WNMFL Gr.CA28MnV
2 422917 GX8CrNi12 Z6CN12-1M GX8CrNi12 G-X8CrNi12 20Ch12WNMFL
4 422920 ZGMn13-1-4 Z120M12M XG120Mn12 SCHMnH1 až 3 G-X120Mn13 1.3802 C120G13 AöMn10 110G13L BW 10 B-1 až 4 AM-X120Mn12
4 422921 Z120M12-M G X120MnCr 12 02 SCMnH 11 L120G13H Gr.C
3 422931 ZG1Cr18Ni9 Z6CN 18-10M G X6CrNi 20 10 SCS 12 G-X10CrNi 18 8 1.4312 LH18N9 10Ch18N9L 2333 302C25 CF-16F
3 422932 Z 25CN 20-10 M G X30CrNi 20 10 G X25CrNiSi 18 9 1.4825 302C35 CF 20
3 422933 Z6CNNb1810-M GX8CrNiNb2011 SCS21 G-X7CrNiNb189 LH18N9T G-X5CrNiNb189 10Ch18N9TL 347C17 CF-8C AM-X7CrNiNb2010
3 422934 SCH 12 G X40CrNiSi 22 9 1.4826 LH23N18C 40Ch24N12SL 309C30 HF
3 422936 Z40CN 25-12 M G X35CrNi 25 12 SCH 13A G-X40CrNiSi 25 12 1.4837 40Ch24N12SL 309C35 HH
2 422938 12Ch21N5G2STL
3 422941 Z 6CNDNb 18 12-M G X6CrNiMoNb 20 11 SCS 22 LH18N10M2T G-X5CrNiMoNb 18 10 10Ch18N12M3T 318C17 CF 3 MN
3 422942 Z6CND 18-12 M G X6CrNiMo 20 11 SCS 14 G-X10CrNiMo 18 9 1.4410 LH18N10M2 2243 315C16 CF-8M
3 422944 G X35CrNi 28 09 SCH 17 309C40 HE
3 422952 Z40CN 25-20 M G X40CrNi 26 20 SCH 22 G-X40CrNiSi 25 20 1.4848 LH25N19S2 20Ch25N19S2L 310C40 HK F.8452
3 422953 LH21N5 12Ch21N5G2SL
3 422955 G X50NiCr 39 19 SCH 20 G-X40NiCrSi 35 25 331C40 HU
3 422958 Z 6NCDV 25-20-04 M G X5NiCrCuMo 29 21 SCS 15 G X7CrNiMoCuNb 18 18 2564 CN-7M
Zahraniční ekvivalenty / Зарубежные аналоги / Międzynarodowe odpowiedniki / Medzinárodné ekvivalenty
ISO 513
CZ PRC EU ISO F I J D D PL A RUS S GB USA E
Podgrupa / Podskupina
Podskupina / Подгруппа
ČSN GB EN ISO AFNOR UNI JIS DIN W.-nr PN ONORM GOST SS BS AISI/SAE
3 17 322 4Cr14Ni14W2Mo 331S42 Ev9
3 17 335 ChN35 VT
3 17 341 TS 63 Z6CND17-13B X5CrNiMo1712 X6CrNiMo1713 1.4919 X5CrNiMo17122S 316S51 TP316H X5CrNiMo17122
3 17 346 0Cr17Ni12Mo2 X 5CrNiMo 17 12 2 TYPE 20 Z 6CND 17.11 X 5CrNiMo 17 12 SUS 316 X 5CrNiMo 17 12 2 1.4401 X 5CrNIMo 17 12 2 KW 2347 316S31 TYPE 316 X 5CrNiMo 17 12 2
3 17 347
3 17 348 0Cr18Ni12Mo2Ti X6CrNiMoTi17-12-2 21 Z6CNDT17-12 X6CrNiMoTi17-12 SUS316Ti X6CrNiMoTi17-12-2 H17N13M2T X6CrNiMoTi17122S 10Ch17N13M2T 2350-02 321S12 316Ti X6CrNiMoTi17122
3 17 349 00Cr17Ni14Mo2 X2CrNiMo 17-12-2 Type 19 Z3CND 18-12-02 X2CrNiMo 17 12 SUS 316 X2CrNiMo 17 13 2 1.4404 00H17N14M2 X2CrNiMo 17 13 2KKW 03Ch17N14M2 2348 316S11 316 L X2CrNiMo 17 13 2
3 17 350 00Cr17Ni14Mo2 X2CrNiMo18-14-3 TYPE 19a Z3CND 17-12-03 X2CrNiMo1713 SUS 316L X2CrNiMo18-14-3 1.4435 X2CrNiMo18143KW 03Ch17N14M2 2353 316S14 TP316L X2CrNiMo18143
4 17 351 TYPE 7 TYPE 635
4 17 351.9 TYPE 7 TYPE 635
3 17 352 0Cr17Ni12Mo2 X3CrNiMo 17-13-3 Type 20a Z7CND 18-12-3 X5CrNiMo 17 13 SUS 316 X5CrNiMo 17 13 3 1.4436 X5CrNiMo 17 13 3 KW 2343 316S31 316 X5CrNiMo 17 13 3
3 17 356 1Cr18Ni12Mo3Ti X6CrNiMoTi17-13 316Ti X10CrNiMoT18-12 H17N13M2T 08Ch17N13M2T 320S33 316Ti
3 17 436 X40MnCr18 1.3817
3 17 460 1.3965 1H17N4G9 12Ch17G9AN4 Gr.202
4 17 465 5Cr21Mn9Ni4N X 53 CrMnNiN21 9 Type 9 Z 52 CMN 21.09 X 53CrMnNiN 21 9 SUH 35 X 53 CrMnNiN21 9 1.4871 50 H21G9N4 55Ch20G9AN4 349S54 EV 12 F.3217
3 17 536 Ni 36 1.3912 FeNi36Pr 36N NILO 36 NILO 36
4 17 618.4 Z120M12 X120Mn12 1.3401 110G13L 2183
1 422904 ZG1Cr13 Z6CN12-1M GX12Cr13 SCS1 GX8CrNi13 1.4008 10Ch12NPL 410C21
1 422905 ZG1Cr13 Z12C13-M G X12Cr13 SCS 1 G-X12Cr13 LOH 13 15 Ch13L 410C21 Gr.CA-15 F.8401
2 422906 Z G2Cr13 Z20C13-M G X30Cr13 SCS 2 G-X20Cr14 1.4027 LH 14 20Ch13 1 420C24 Gr.CA-40 F.8387
M 2 422911 ZG1Cr17 Z20CN17-2 GX35Cr17 G-X22CrNi17 ANC 2 Gr.CB30
2 422912 G-X40CrSi17
2 422913 Z40C28 M SCH 2 G-X40CrSi23 LH 26 452C11 Gr.HC
2 422914 Z GCr28 Z40C28-M G X35Cr28 SCH 2 G-X70Cr29 LH 26 75Ch28L 452C11 Gr.HC
2 422916 G-X22CrMoV12-1 G-X22CrMoV12-1 1.4922 G-X22CrMoV12-1 20Ch12WNMFL Gr.CA28MnV
2 422917 GX8CrNi12 Z6CN12-1M GX8CrNi12 G-X8CrNi12 20Ch12WNMFL
4 422920 ZGMn13-1-4 Z120M12M XG120Mn12 SCHMnH1 až 3 G-X120Mn13 1.3802 C120G13 AöMn10 110G13L BW 10 B-1 až 4 AM-X120Mn12
4 422921 Z120M12-M G X120MnCr 12 02 SCMnH 11 L120G13H Gr.C
3 422931 ZG1Cr18Ni9 Z6CN 18-10M G X6CrNi 20 10 SCS 12 G-X10CrNi 18 8 1.4312 LH18N9 10Ch18N9L 2333 302C25 CF-16F
3 422932 Z 25CN 20-10 M G X30CrNi 20 10 G X25CrNiSi 18 9 1.4825 302C35 CF 20
3 422933 Z6CNNb1810-M GX8CrNiNb2011 SCS21 G-X7CrNiNb189 LH18N9T G-X5CrNiNb189 10Ch18N9TL 347C17 CF-8C AM-X7CrNiNb2010
3 422934 SCH 12 G X40CrNiSi 22 9 1.4826 LH23N18C 40Ch24N12SL 309C30 HF
3 422936 Z40CN 25-12 M G X35CrNi 25 12 SCH 13A G-X40CrNiSi 25 12 1.4837 40Ch24N12SL 309C35 HH
2 422938 12Ch21N5G2STL
3 422941 Z 6CNDNb 18 12-M G X6CrNiMoNb 20 11 SCS 22 LH18N10M2T G-X5CrNiMoNb 18 10 10Ch18N12M3T 318C17 CF 3 MN
3 422942 Z6CND 18-12 M G X6CrNiMo 20 11 SCS 14 G-X10CrNiMo 18 9 1.4410 LH18N10M2 2243 315C16 CF-8M
3 422944 G X35CrNi 28 09 SCH 17 309C40 HE
3 422952 Z40CN 25-20 M G X40CrNi 26 20 SCH 22 G-X40CrNiSi 25 20 1.4848 LH25N19S2 20Ch25N19S2L 310C40 HK F.8452
3 422953 LH21N5 12Ch21N5G2SL
3 422955 G X50NiCr 39 19 SCH 20 G-X40NiCrSi 35 25 331C40 HU
3 422958 Z 6NCDV 25-20-04 M G X5NiCrCuMo 29 21 SCS 15 G X7CrNiMoCuNb 18 18 2564 CN-7M
