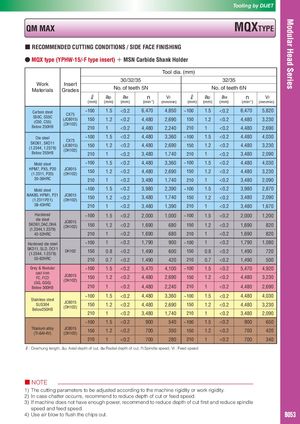

■ RECOMMENDED CUTTING CONDITIONS / SIDE FACE FINISHING
- MQX type (YPHW-15/-F type insert) ＋ MSN Carbide Shank Holder
| Tool dia | .(mm) | ||||||||||
| Work | Insert | 30/32/ | 35 | 32/35 | |||||||
| Materials | Grades | N | o. of tee | th5N | N | o. of tee | h6N | ||||
| ℓ (mm) | ap (mm) | ae (mm) | n (min-1) | Vf (mm/min) | ℓ (mm) | ap (mm) | ae (mm) | n (min-1) | Vf (mm/min) | ||
| Carbon steel | CX75 | ~100 | 1.5 | 6,470 | 4,850 | ~100 | 1.5 | 6,470 | 5,820 | ||
| S50C, S55C (C50 C55) | (JC8015) | 150 | 1.2 | 4,480 | 2,690 | 150 | 1.2 | 4,480 | 3,230 | ||
| , Below 250HB | (DH102) | 210 | 1 | 4,480 | 2,240 | 210 | 1 | 4,480 | 2,690 | ||
| Die steel | CX75 | ~100 | 1.5 | 4,480 | 3,360 | ~100 | 1.5 | 4,480 | 4,030 | ||
| SKD61, SKD11 (1.2344, 1.2379) | (JC8015) DH102 | 150 | 1.2 | 4,480 | 2,690 | 150 | 1.2 | 4,480 | 3,230 | ||
| Below 255HB | () | 210 | 1 | 3,480 | 1,740 | 210 | 1 | 3,480 | 2,090 | ||
| Mold steel | ~100 | 1.5 | 4,480 | 3,360 | ~100 | 1.5 | 4,480 | 4,030 | |||
| HPM7, PX5, P20 (1.2311, P20) | JC8015 (DH102) | 150 | 1.2 | 4,480 | 2,690 | 150 | 1.2 | 4,480 | 3,230 | ||
| 30-36HRC | 210 | 1 | 3,480 | 1,740 | 210 | 1 | 3,480 | 2,090 | |||
| Mold steel | ~100 | 1.5 | 3,980 | 2,390 | ~100 | 1.5 | 3,980 | 2,870 | |||
| NAK80, HPM1, P21 (1.2311P21) | JC8015 (DH102) | 150 | 1.2 | 3,480 | 1,740 | 150 | 1.2 | 3,480 | 2,090 | ||
| 38-43HRC | 210 | 1 | 3,480 | 1,390 | 210 | 1 | 3,480 | 1,670 | |||
| Hardened die steel | ~100 | 1.5 | 2,000 | 1,000 | ~100 | 1.5 | 2,000 | 1,200 | |||
| SKD61,DAC,DHA (1234412379) | JC8015 (DH102) | 150 | 1.2 | 1,690 | 680 | 150 | 1.2 | 1,690 | 820 | ||
| .,. 42-52HRC | 210 | 1 | 1,690 | 680 | 210 | 1 | 1,690 | 820 | |||
| Hardened die steel | ~100 | 1 | 1,790 | 900 | ~100 | 1 | 1,790 | 1,080 | |||
| SKD11, SLD, DC11 (1.2344, 1.2379) | DH102 | 150 | 0.8 | 1,490 | 600 | 150 | 0.8 | 1,490 | 720 | ||
| 55-62HRC | 210 | 0.7 | 1,490 | 420 | 210 | 0.7 | 1,490 | 500 | |||
| Grey & Nodular | ~100 | 1.5 | 5,470 | 4,100 | ~100 | 1.5 | 5,470 | 4,920 | |||
| cast iron FC, FCD | JC8015 (DH102) | 150 | 1.2 | 4,480 | 2,690 | 150 | 1.2 | 4,480 | 3,230 | ||
| (GG, GGG) Below 300HB | 210 | 1 | 4,480 | 2,240 | 210 | 1 | 4,480 | 2,690 | |||
| Stil tl | ~100 | 1.5 | 4,480 | 3,360 | ~100 | 1.5 | 4,480 | 4,030 | |||
| aness see SUS304 | JC8015 (DH102) | 150 | 1.2 | 4,480 | 2,690 | 150 | 1.2 | 4,480 | 3,230 | ||
| Below250HB | 210 | 1 | 3,480 | 1,740 | 210 | 1 | 3,480 | 2,090 | |||
| ~100 | 1.5 | 900 | 540 | ~100 | 1.5 | 900 | 650 | ||||
| Titanium alloy (Ti-6Al-4V) | JC8015 (DH102) | 150 | 1.2 | 700 | 350 | 150 | 1.2 | 700 | 420 | ||
| 210 | 1 | 700 | 280 | 210 | 1 | 700 | 340 |
ℓ: Overhung length, a Axial depth of cut, a :Radial depth of cut, n:Spindle speed, V : Feed speed
p: e f
