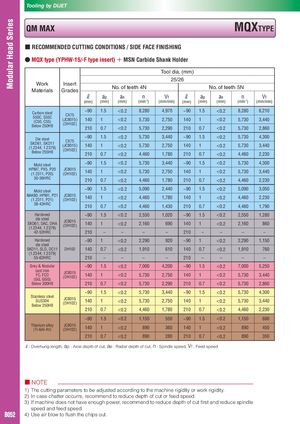

■ RECOMMENDED CUTTING CONDITIONS / SIDE FACE FINISHING
- MQX type (YPHW-15/-F type insert) ＋ MSN Carbide Shank Holder
| Tool dia | .(mm) | ||||||||||
| Work Materials | Insert Grades | No. of te | eth4N | 25/ | 26 | No. of tee | th5N | ||||
| ℓ (mm) | ap (mm) | ae (mm) | n (min-1) | Vf (mm/min) | ℓ (mm) | ap (mm) | ae (mm) | n (min-1) | Vf (mm/min) | ||
| Carbon steel | CX75 | ~90 | 1.5 | 8,280 | 4,970 | ~90 | 1.5 | 8,280 | 6,210 | ||
| S50C, S55C (C50, C55) | (JC8015) (DH102) | 140 | 1 | 5,730 | 2,750 | 140 | 1 | 5,730 | 3,440 | ||
| Below 250HB | 210 | 0.7 | 5,730 | 2,290 | 210 | 0.7 | 5,730 | 2,860 | |||
| Die steel | CX75 | ~90 | 1.5 | 5,730 | 3,440 | ~90 | 1.5 | 5,730 | 4,300 | ||
| SKD61, SKD11 (1.2344, 1.2379) | (JC8015) DH102 | 140 | 1 | 5,730 | 2,750 | 140 | 1 | 5,730 | 3,440 | ||
| Below 255HB | () | 210 | 0.7 | 4,460 | 1,780 | 210 | 0.7 | 4,460 | 2,230 | ||
| Mold steel | ~90 | 1.5 | 5,730 | 3,440 | ~90 | 1.5 | 5,730 | 4,300 | |||
| HPM7, PX5, P20 (1.2311, P20) | JC8015 (DH102) | 140 | 1 | 5,730 | 2,750 | 140 | 1 | 5,730 | 3,440 | ||
| 30-36HRC | 210 | 0.7 | 4,460 | 1,780 | 210 | 0.7 | 4,460 | 2,230 | |||
| Mold steel | ~90 | 1.5 | 5,090 | 2,440 | ~90 | 1.5 | 5,090 | 3,050 | |||
| NAK80, HPM1, P21 (1.2311, P21) | JC8015 (DH102) | 140 | 1 | 4,460 | 1,780 | 140 | 1 | 4,460 | 2,230 | ||
| 38-43HRC | 210 | 0.7 | 4,460 | 1,430 | 210 | 0.7 | 4,460 | 1,790 | |||
| Hardened die steel | ~90 | 1.5 | 2,550 | 1,020 | ~90 | 1.5 | 2,550 | 1,280 | |||
| SKD61, DAC, DHA (12344 12379) | JC8015 (DH102) | 140 | 1 | 2,160 | 690 | 140 | 1 | 2,160 | 860 | ||
| ., . 42-52HRC | 210 | – | – | – | – | 210 | – | – | – | – | |
| Hardened die steel | ~90 | 1 | 2,290 | 920 | ~90 | 1 | 2,290 | 1,150 | |||
| SKD11, SLD, DC11 (12344 12379) | DH102 | 140 | 0.7 | 1,910 | 610 | 140 | 0.7 | 1,910 | 760 | ||
| ., . 55-62HRC | 210 | – | – | – | – | 210 | – | – | – | – | |
| Grey & Nodular t i | ~90 | 1.5 | 7,000 | 4,200 | ~90 | 1.5 | 7,000 | 5,250 | |||
| cas ron FC, FCD (GG GGG) | JC8015 (DH102) | 140 | 1 | 5,730 | 2,750 | 140 | 1 | 5,730 | 3,440 | ||
| , Below 300HB | 210 | 0.7 | 5,730 | 2,290 | 210 | 0.7 | 5,730 | 2,860 | |||
| ~90 | 1.5 | 5,730 | 3,440 | ~90 | 1.5 | 5,730 | 4,300 | ||||
| Stainless steel SUS304 Bl 2HB | JC8015 (DH102) | 140 | 1 | 5,730 | 2,750 | 140 | 1 | 5,730 | 3,440 | ||
| eow 50 | 210 | 0.7 | 4,460 | 1,780 | 210 | 0.7 | 4,460 | 2,230 | |||
| ~90 | 1.5 | 1,150 | 550 | ~90 | 1.5 | 1,150 | 690 | ||||
| Titanium alloy (Ti-6Al-4V) | JC8015 (DH102) | 140 | 1 | 890 | 360 | 140 | 1 | 890 | 450 | ||
| 210 | 0.7 | 890 | 280 | 210 | 0.7 | 890 | 350 |
