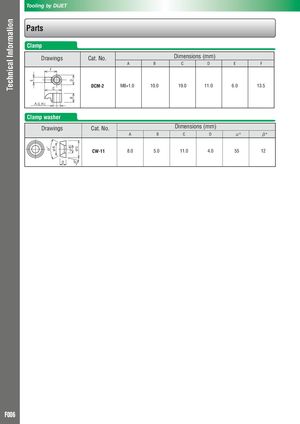

E DB Tooling by DIJET Parts Clamp Drawings Cat. No. Dimensions (mm) A B C D E F F C DCM-2 M8×1.0 10.0 19.0 11.0 6.0 13.5 Ａ(L.H.) Clamp washer Drawings Cat. No. Dimensions (mm) A B C D α° β° CW-11 8.0 5.0 11.0 4.0 55 12 F006
