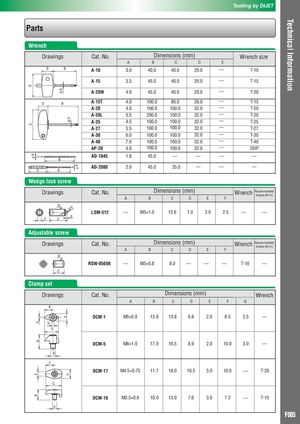

Tooling by DIJET Parts Wrench Drawings Cat. No. Dimensions (mm) Wrench size A B C D E A-10 3.0 40.0 40.0 20.0 — T-10 A-15 3.5 45.0 40.0 20.0 — T-15 A-20W 4.0 45.0 40.0 20.0 — T-20 A-15T 4.0 100.0 80.0 26.0 — T-15 A-20 4.0 100.0 100.0 32.0 — T-20 A-20L 5.5 200.0 100.0 32.0 — T-20 A-25 4.5 100.0 100.0 32.0 — T-25 A-27 5.5 100.0 100.0 32.0 — T-27 A-30 6.0 100.0 100.0 32.0 — T-30 A-40 7.0 100.0 100.0 32.0 — T-40 AP-20 4.0 100.0 100.0 32.0 — 20IP AD-1845 1.8 45.0 — — — — AD-2080 2.0 45.0 35.0 — — — Wedge lock screw Drawings Cat. No. Dimensions (mm) Wrench Recommendedtorque (N・m) A B C D E F LSM-512 — M5×1.0 12.6 1.0 3.0 2.5 — — Adjustable screw Drawings Cat. No. Dimensions (mm) Wrench Recommendedtorque (N・m) A B C D E F RSW-05008 — M5×0.8 8.0 — — — T-10 — Clamp set Drawings Cat. No. Dimensions (mm) Wrench A B C D E F G DCM-1 M5×0.8 13.8 13.8 6.8 2.0 8.5 2.5 — DCM-5 M6×1.0 17.0 16.5 8.9 2.0 10.0 3.0 — DCM-17 M4.5×0.75 11.7 18.0 10.5 5.0 10.0 ̶ T-20 DCM-18 M3.5×0.6 10.0 13.0 7.6 3.0 7.2 ̶ T-15 F005
