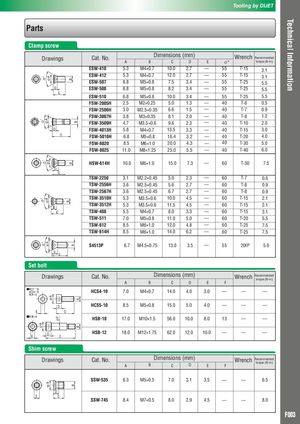

Tooling by DIJET Parts Clamp screw Drawings Cat. No. A Dimensions (mm) Wrench RecommendedBCDEα°torque (N・m) ESW-410 5.3 M4×0.7 10.0 2.7 — 55 T-15 3.1 ESW-412 5.3 M4×0.7 12.0 2.7 — 55 T-15 3.1 ESW-507 6.8 M5×0.8 7.5 3.4 — 55 T-25 5.5 ESW-508 6.8 M5×0.8 8.2 3.4 — 55 T-25 5.5 ESW-510 6.8 M5×0.8 10.0 3.4 — 55 T-25 5.5 FSW-2005H 2.5 M2×0.25 5.0 1.3 — 40 T-6 0.5 FSW-2506H 3.0 M2.5×0.35 6.6 1.5 — 40 T-7 0.9 FSW-3007H 3.8 M3×0.35 8.1 2.0 — 40 T-8 1.2 FSW-3509H 4.7 M3.5×0.6 9.6 2.3 — 40 T-10 2.0 FSW-4013H 5.8 M4×0.7 13.5 3.3 — 40 T-15 3.0 FSW-5016H 6.8 M5×0.8 16.4 3.2 — 40 T-20 4.0 FSW-6020 8.5 M6×1.0 20.0 4.3 — 40 T-30 5.0 FSW-8025 11.0 M8×1.25 25.0 5.5 — 40 T-40 6.0 HSW-614H 10.0 M6×1.0 15.0 7.3 — 60 T-30 7.5 TSW-2250 3.1 M2.2×0.45 5.0 2.3 — 60 T-7 0.6 TSW-2556H 3.6 M2.5×0.45 5.6 2.7 — 60 T-8 0.9 TSW-2567H 3.6 M2.5×0.45 6.7 2.7 — 60 T-8 0.9 TSW-3510H 5.3 M3.5×0.6 10.0 4.5 — 60 T-15 2.1 TSW-3512H 5.3 M3.5×0.6 11.5 4.5 — 60 T-15 2.1 TSW-408 5.5 M4×0.7 8.0 3.3 — 60 T-15 3.1 TSW-511 7.0 M5×0.8 11.0 5.0 — 60 T-20 5.5 TSW-612 8.5 M6×1.0 12.0 4.8 — 60 T-25 7.5 TSW-614H 8.5 M6×1.0 14.0 6.2 — 60 T-25 7.5 S4513P 6.7 M4.5×0.75 13.0 3.5 — 55 20IP 5.0 Set bolt Drawings Cat. No. Dimensions (mm) Wrench Recommendedtorque (N・m) A B C D E F HCS4-10 7.0 M4×0.7 14.0 4.0 3.0 — — — HCS5-10 8.5 M5×0.8 15.0 5.0 4.0 — — — HSB-10 17.0 M10×1.5 56.0 10.0 8.0 13 — — HSB-12 18.0 M12×1.75 62.0 12.0 10.0 — — — Shim screw Drawings Cat. No. A Dimensions (mm)BC D E Wrench Recommendedtorque (N・m)F SSW-535 6.3 M5×0.5 7.0 3.1 3.5 — — 6.5 SSW-745 8.4 M7×0.5 8.0 2.9 4.5 — — 8.0 F003
