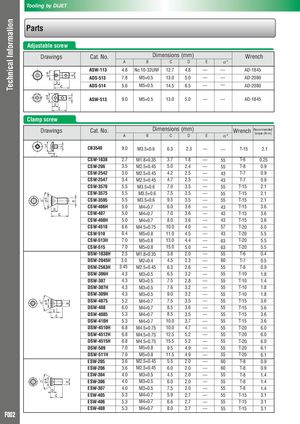

Общий каталог Dijet 2018 - страница 546

A Tooling by DIJET Parts Adjustable screw Drawings Cat. No. Dimensions (mm) Wrench A B C D E α° ASW-113 4.8 No.10-32UNF 12.7 4.8 — — AD-1845 ADS-513 7.8 M5×0.5 13.0 5.0 — — AD-2080 ADS-514 5.6 M5×0.5 14.5 6.5 — — AD-2080 ASW-513 9.0 M5×0.5 13.0 5.0 — — AD-1845 Clamp screw Drawings Cat. No. A Dimensions (mm)BC D E α° Wrench Recommendedtorque (N・m) CB3540 9.0 M3.5×0.6 6.3 2.3 — ̶ T-15 2.1 CSW-1838 2.7 M1.8×0.35 3.7 1.8 — 55 T-6 0.25 CSW-206 3.5 M2.5×0.45 5.0 2.4 — 55 T-8 0.9 CSW-2542 3.0 M2.5×0.45 4.2 2.5 — 43 T-7 0.9 CSW-2547 3.4 M2.5×0.45 4.7 2.5 — 43 T-7 0.9 CSW-3570 5.5 M3.5×0.6 7.0 3.5 — 55 T-15 2.1 CSW-3575 5.5 M3.5×0.6 7.5 3.5 — 55 T-15 2.1 CSW-3595 5.5 M3.5×0.6 9.5 3.5 — 55 T-15 2.1 CSW-406H 5.0 M4×0.7 6.0 3.6 — 43 T-15 3.6 CSW-407 5.0 M4×0.7 7.0 3.6 — 43 T-15 3.6 CSW-408H 5.0 M4×0.7 8.0 3.6 — 43 T-15 3.6 CSW-4510 6.6 M4.5×0.75 10.0 4.0 — 57 T-20 5.0 CSW-510 6.4 M5×0.8 11.0 4.5 — 43 T-20 5.5 CSW-513H 7.0 M5×0.8 13.0 4.4 — 63 T-20 5.5 CSW-515 7.0 M5×0.8 15.0 5.0 — 63 T-20 5.5 DSW-1838H 2.5 M1.8×0.35 3.8 2.0 — 55 T-6 0.4 DSW-2045H 3.0 M2×0.4 4.5 2.3 — 60 T-7 0.5 DSW-2563H 3.45 M2.5×0.45 6.3 2.6 — 55 T-8 0.9 DSW-306H 4.3 M3×0.5 6.5 3.2 — 55 T-10 1.8 DSW-307 4.3 M3×0.5 7.5 2.8 — 55 T-10 1.4 DSW-307H 4.3 M3×0.5 7.6 3.2 — 55 T-10 1.8 DSW-309H 4.3 M3×0.5 9.0 3.2 — 55 T-10 1.8 DSW-4075 5.2 M4×0.7 7.5 3.5 — 55 T-15 3.6 DSW-408 6.0 M4×0.7 8.5 3.6 — 55 T-15 3.6 DSW-4085 5.3 M4×0.7 8.5 3.5 — 55 T-15 3.6 DSW-410H 5.3 M4×0.7 10.0 3.7 — 55 T-15 3.6 DSW-4510H 6.8 M4.5×0.75 10.0 4.7 — 55 T-20 6.0 DSW-4512H 6.8 M4.5×0.75 12.5 5.2 — 55 T-20 6.0 DSW-4515H 6.8 M4.5×0.75 15.5 5.2 — 55 T-20 6.0 DSW-509 7.0 M5×0.8 9.5 4.9 — 55 T-20 6.1 DSW-511H 7.0 M5×0.8 11.5 4.9 — 55 T-20 6.1 ESW-205 3.6 M2.5×0.45 5.5 2.0 — 60 T-8 0.9 ESW-206 3.6 M2.5×0.45 6.0 2.0 — 60 T-8 0.9 ESW-304 4.0 M3×0.5 4.5 2.0 — 55 T-8 1.4 ESW-306 4.0 M3×0.5 6.0 2.0 — 55 T-8 1.4 ESW-307 4.0 M3×0.5 7.5 2.0 — 55 T-8 1.4 ESW-405 5.3 M4×0.7 5.9 2.7 — 55 T-15 3.1 ESW-406 5.3 M4×0.7 6.6 2.7 — 55 T-15 3.1 ESW-408 5.3 M4×0.7 8.0 2.7 — 55 T-15 3.1 F002
