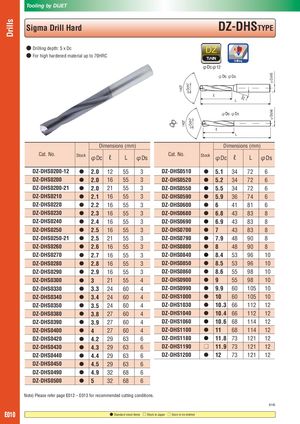

Tooling by DIJET Sigma Drill Hard DZ-DHSTYPE ● Drilling depth: 5 x Dc ● For high hardened material up to 70HRC φDcφ12 ℓ L ℓ L Dimensions (mm) Dimensions (mm) Cat. No. Stock φDc ℓ L φDs Cat. No. Stock φDc ℓ L φDs DZ-DHS0200-12 ● 2.0 12 55 3 DZ-DHS0510 ● 5.1 34 72 6 DZ-DHS0200 ● 2.0 16 55 3 DZ-DHS0520 ● 5.2 34 72 6 DZ-DHS0200-21 ● 2.0 21 55 3 DZ-DHS0550 ● 5.5 34 72 6 DZ-DHS0210 ● 2.1 16 55 3 DZ-DHS0590 ● 5.9 36 74 6 DZ-DHS0220 ● 2.2 16 55 3 DZ-DHS0600 ● 6 41 81 6 DZ-DHS0230 ● 2.3 16 55 3 DZ-DHS0680 ● 6.8 43 83 8 DZ-DHS0240 ● 2.4 16 55 3 DZ-DHS0690 ● 6.9 43 83 8 DZ-DHS0250 ● 2.5 16 55 3 DZ-DHS0700 ● 7 43 83 8 DZ-DHS0250-21 ● 2.5 21 55 3 DZ-DHS0790 ● 7.9 48 90 8 DZ-DHS0260 ● 2.6 16 55 3 DZ-DHS0800 ● 8 48 90 8 DZ-DHS0270 ● 2.7 16 55 3 DZ-DHS0840 ● 8.4 53 96 10 DZ-DHS0280 ● 2.8 16 55 3 DZ-DHS0850 ● 8.5 53 96 10 DZ-DHS0290 ● 2.9 16 55 3 DZ-DHS0860 ● 8.6 55 98 10 DZ-DHS0300 ● 3 21 55 4 DZ-DHS0900 ● 9 55 98 10 DZ-DHS0330 ● 3.3 24 60 4 DZ-DHS0990 ● 9.9 60 105 10 DZ-DHS0340 ● 3.4 24 60 4 DZ-DHS1000 ● 10 60 105 10 DZ-DHS0350 ● 3.5 24 60 4 DZ-DHS1030 ● 10.3 66 112 12 DZ-DHS0380 ● 3.8 27 60 4 DZ-DHS1040 ● 10.4 66 112 12 DZ-DHS0390 ● 3.9 27 60 4 DZ-DHS1060 ● 10.6 68 114 12 DZ-DHS0400 ● 4 27 60 4 DZ-DHS1100 ● 11 68 114 12 DZ-DHS0420 ● 4.2 29 63 6 DZ-DHS1180 ● 11.8 73 121 12 DZ-DHS0430 ● 4.3 29 63 6 DZ-DHS1190 ⃞ 11.9 73 121 12 DZ-DHS0440 ● 4.4 29 63 6 DZ-DHS1200 ● 12 73 121 12 DZ-DHS0450 ● 4.5 29 63 6 DZ-DHS0490 ● 4.9 32 68 6 DZ-DHS0500 ● 5 32 68 6 Note) Please refer page E012 – E013 for recommended cutting conditions. 6145 E010 ● Standard stock items □ Stock in Japan ○ Soon to be deleted
