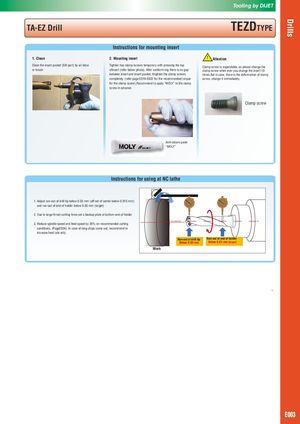

Tooling by DIJET TA-EZ Drill TEZDTYPE Instructions for mounting insert 1. Clean 2. Mounting insert ! Attention Clean the insert pocket (Slit part) by air blow Tighten two clamp screws temporary with pressing the top Clamp screw is expendable, so please change the or brush. ofinsert (refer below photo). After conform-ing there is no gap clamp screw when ever you change the insert 10 between insert and insert pocket, thighten the clamp screws times.But in case, there is the deformation of clamp completely. (refer page E019-E022 for the recommended torque screw, change it immediately. for the clamp screw).Recommend to apply “MOLY” to the clamp screw in advance. Clamp screw Anti-seizure paste “MOLY” Instructions for using at NC lathe 1. Adjust run-out of drill tip below 0.03 mm (off set of center below 0.015 mm) and run-out of end of holder below 0.03 mm (target) 2. Due to large thrust cutting force,set a backup plate at bottom end of holder. 3. Reduce spindle speed and feed speed by 20% on recommended cutting conditions. (PageE024). In case of long chips come out, recommend to increase feed rate only. Run-out of drill tip Run-out of end of holder Below 0.03 mm Below 0.03 mm (target) Work E003
