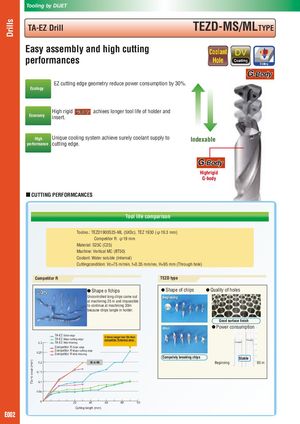

Tooling by DIJET TA-EZ Drill TEZD-MS/MLTYPE Easy assembly and high cutting performances EZ cutting edge geometry reduce power consumption by 30%. Ecology High rigid achiees longer tool life of holder and Economy insert. High Unique cooling system achieve surely coolant supply to Indexable performance cutting edge. Highrigid G-body CUTTING PERFORMCANCES Tool life comparison Toolno.: TEZD1900S25-ML (5XDc), TEZ 1930 (φ19.3 mm) Competitor R: φ19 mm Material: S25C (C25) Machine: Vertical MC (BT50) Coolant: Water soluble (Internal) Cuttingcondition: Vc=75 m/min, f=0.35 mm/rev, H=95 mm (Through hole) Competitor R TEZD type Shape o fchips Shape of chips Quality of holes Uncontrolled long chips came out Beginning at machining 25 m and impossible to continue at machining 30m because chips tangle in holder. Good surface finish Power consumption TA-EZ Outer edgeTA-EZ Major cutting edge3 times longer tool life thancompetitor R/normal wear TA-EZ Web thinning Competitor R Outer edge Competitor R Major cutting edge Competitor R Web thinning Compelely breaking chips Stable 30 m NG Beginning 85 m Cutting length (mm) E002
