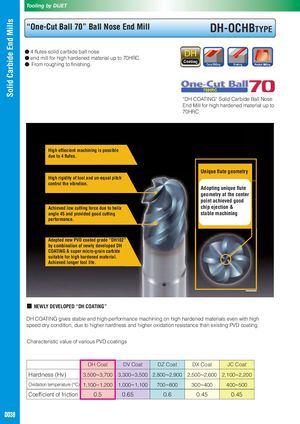

Solid Carbide End Mills Tooling by DIJET “One-Cut Ball 70” Ball Nose End Mill DH-OCHBTYPE ● 4 flutes solid carbide ball nose ● end mill for high hardened material up to 70HRC. ● From roughing to finishing. “DH COATING” Solid Carbide Ball Nose End Mill for high hardened material up to 70HRC High effiecient machining is possible due to 4 flutes. Unique flute geometry High rigidity of tool and un-equal pitch control the vibration. Adopting unique flute geometry at the center point achieved good Achieved low cutting force due to helix chip ejection & angle 45 and provided good cutting stable machining performance. Adopted new PVD coated grade “DH102” by combination of newly developed DH COATING & super micro-grain carbide suitable for high hardened material. Achieved longer tool life. ■ NEWLY DEVELOPED “DH COATING” DH COATING gives stable and high-performance machining on high hardened materials even with high speed dry condition, due to higher hardness and higher oxidation resistance than existing PVD coating. Characteristic value of various PVD coatings DH Coat DV Coat DZ Coat DX Coat JC Coat Hardness (Hv) 3,500~3,700 3,300~3,500 2,800~2,900 2,500~2,600 2,100~2,200 Oxidation temperature (°C) 1,100~1,200 1,000~1,100 700~800 300~400 400~500 Coefficient of friction 0.5 0.65 0.6 0.45 0.45 D038
