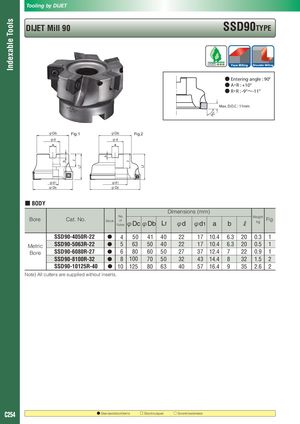

Indexable Tools b ℓ Lf b ℓ Lf ℓ 90° ℓ Tooling by DIJET DIJET Mill 90 SSD90TYPE ● Entering angle : 90° ● A・R : +10° ● R・R : -9°～-11° Max. D.O.C : 11mm φDb Fig.1 φDb Fig.2 φ φ φd φd φ φ a a φd1 φd1 φ φ φDc φDc φ φ ■ BODY Dimensions (mm) Bore Cat. No. No.StockofflutesφDc φDb Lf φd φd1 a b ℓ WeightkgFig. SSD90-4050R-22 ● 4 50 41 40 22 17 10.4 6.3 20 0.3 1 Metric SSD90-5063R-22 ● 5 63 50 40 22 17 10.4 6.3 20 0.5 1 Bore SSD90-6080R-27 ● 6 80 60 50 27 37 12.4 7 22 0.9 1 SSD90-8100R-32 ● 8 100 70 50 32 43 14.4 8 32 1.5 2 SSD90-10125R-40 ● 10 125 80 63 40 57 16.4 9 35 2.6 2 Note) All cutters are supplied without inserts. C254 ● Standardstockitems □ StockinJapan ○ Soontobedeleted
