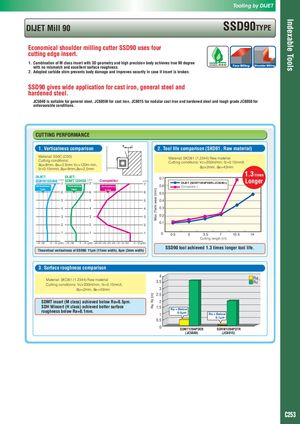

Tooling by DIJET Indexable Tools DIJET Mill 90 SSD90TYPE Economical shoulder milling cutter SSD90 uses four cutting edge insert. 1. Combination of M class insert with 3D geometry and high precision body achieves true 90 degree with no mismatch and excellent surface roughness. 2. Adopted carbide shim prevents body damage and improves security in case if insert is broken. SSD90 gives wide application for cast iron, general steel and hardened steel. JC5040 is suitable for general steel, JC605W for cast iron, JC8015 for nodular cast iron and hardened steel and tough grade JC8050 for unfavourable conditions. CUTTING PERFORMANCE 1. Verticalness comparison 2. Tool life comparison (SKD61, Raw material) Material: S50C (C50) Material: SKD61 (1.2344) Raw material Cutting conditions: Cutting conditions: Vc=200m/min, fz=0.15mm/t, ap=8mm, ae=2.5mm Vc=120m min, fz=0.15mm/t, ap=8mm,ae=2,5mm ap=2mm, ae=43mm DIJET: DIJET: 0.7 1.3 times SDHW120408 (mm) SDMT120408 (mm) 7 7 Competitor (mm) 7 DIJET (SDMT1204PDER) Longer Verticalness Verticalness Verticalness 0.6 Competitor I 11μm 16μm 41μm 6 6 6 0.5 5 5 5 0.4 4 4 4 0.3 3 3 3 0.2 0.1 2 2 2 1 1 1 0 0.5 2 3.5 7 10.5 14 Cutting length (m) +10 +50 −5 −10 (μm) +10 +50 −5 −10 (μm) +40+35 +30 +25 +20 +15 +10 +50 −5 −10 (μm) Theoretical verticalness of SSD90: 11μm (11mm width), 8μm (3mm width) SSD90 tool achieved 1.3 times longer tool life. 3. Surface roughness comparison 4 Ra Material: SKD61 (1.2344) Raw material 3.5 Rz Cutting conditions: Vc=200m/min, fz=0.15mm/t, ap=2mm, ae=43mm 3 2.5 SDMT insert (M class) achieved below Ra=0.5μm. 2 SDH Winsert (H class) achieved better surface 1.5 Ra = Below roughness below Ra=0.1mm. 0.5μm 1 Ra = Below 0.1μm 0.5 0 SDMT1204PDER SDHW1204PDTR (JC5040) (JC8015) C253
