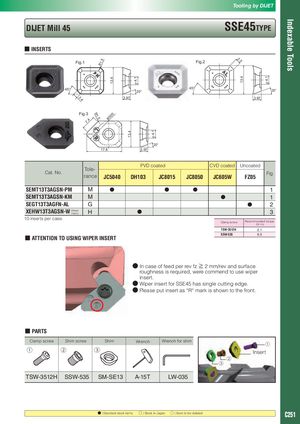

Tooling by DIJET Indexable Tools DIJET Mill 45 SSE45TYPE ■ INSERTS 2. .5 Fig.1 Fig.2 5 R1
4.1 13.4
4.1 13.4 45° 45° 20° 20° 3.97 3.97 2. 4 Fig.3 R1 00 R5 .5 4 7.
4.1 13.4 20° 17.8 3.97 PVD coated CVD coated Uncoated Tole- Cat. No. Fig. rance JC5040 DH103 JC8015 JC8050 JC605W FZ05 SEMT13T3AGSN-PM M ● ● ● 1 SEMT13T3AGSN-KM M ● 1 SEGT13T3AGFN-AL G ● 2 XEHW13T3AGSN-W (Wiper insert) H ● 3 10 inserts per case. Recommended torque (N・m) Clamp screw TSW-3512H 2.1 ■ ATTENTION TO USING WIPER INSERT SSW-535 6.5 ● In case of feed per rev fz ≧ 2 mm/rev and surface roughness is required, were commend to use wiper insert. ● Wiper insert for SSE45 has single cutting edge. ● Please put insert as “R“ mark is shown to the front. ■ PARTS ① Clamp screw Shim screw Shim Wrench Wrench for shim ① ② ③ Insert ② ③ TSW-3512H SSW-535 SM-SE13 A-15T LW-035 ● : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C251
