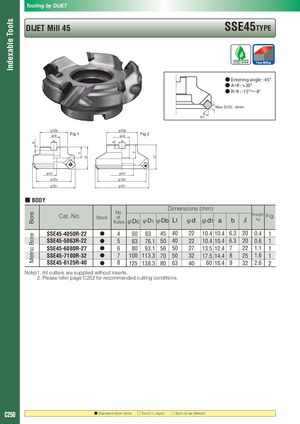

Indexable Tools b ℓ Lf b ℓ Lf ℓ ℓ Tooling by DIJET DIJET Mill 45 SSE45TYPE ● Entering angle : 45° ● A・R : +20° ● R・R : -15°～-8° Max. D.O.C : 6mm 45° φDb φDb φ φ φd Fig.1 φd Fig.2 F a a φ φ φd1 φd1 φ φ φDc φDc φ φ φD1 φD1 φ φ ■ BODY Dimensions (mm) Cat. No. No.StockofflutesφDc φD1 φDb Lf φd φd1 a Weight Fig.bℓkg SSE45-4050R-22 ● 4 50 63 45 40 22 10.4 10.4 6.3 20 0.4 1 SSE45-5063R-22 ● 5 63 76.1 50 40 22 10.4 10.4 6.3 20 0.6 1 SSE45-6080R-27 ● 6 80 93.1 56 50 27 13.5 12.4 7 22 1.1 1 SSE45-7100R-32 ● 7 100 113.3 70 50 32 17.5 14.4 8 25 1.6 1 SSE45-8125R-40 ● 8 125 138.3 80 63 40 60 16.4 9 32 2.6 2 Note)1. All cutters are supplied without inserts. 2. Please refer page C252 for recommended cutting conditions. C250 ● Standard stock items □ Stock in Japan ○ Soon to be deleted
