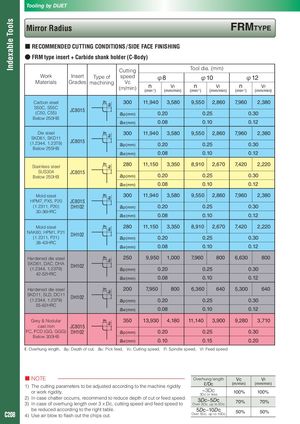

Tooling by DIJET Indexable Tools Mirror Radius FRMTyPE ■ RECOMMENDED CUTTING CONDITIONS / SIDE FACE FINISHING ● FRM type insert + Carbide shank holder (C-Body) Cutting Tool dia. (mm) Work Insert Type of speed φ8 φ10 φ12 Materials Grades machining Vc (m/min) n -1 Vf n -1 Vf n -1 Vf (min ) (mm/min) (min ) (mm/min) (min ) (mm/min) Carbon steel 300 11,940 3,580 9,550 2,860 7,960 2,380 S50C, S55C JC8015 (C50, C55) ap (mm) 0.20 0.25 0.30 Below 250HB ae (mm) 0.08 0.10 0.12 Die steel 300 11,940 3,580 9,550 2,860 7,960 2,380 SKD61, SKD11 (1.2344, 1.2379) JC8015 ap (mm) 0.20 0.25 0.30 Below 255HB ae (mm) 0.08 0.10 0.12 Stainless steel 280 11,150 3,350 8,910 2,670 7,420 2,220 SUS304 JC8015 Below 250HB ap (mm) 0.20 0.25 0.30 ae (mm) 0.08 0.10 0.12 Mold steel 300 11,940 3,580 9,550 2,860 7,960 2,380 HPM7, PX5, P20 JC8015 (1.2311, P20) DH102 ap (mm) 0.20 0.25 0.30 30-36HRC ae (mm) 0.08 0.10 0.12 Mold steel 280 11,150 3,350 8,910 2,670 7,420 2,220 NAK80, HPM1, P21 DH102 (1.2311, P21) ap (mm) 0.20 0.25 0.30 38-43HRC ae (mm) 0.08 0.10 0.12 Hardened die steel 250 9,950 1,000 7,960 800 6,630 800 SKD61, DAC, DHA DH102 (1.2344, 1.2379) ap (mm) 0.20 0.25 0.30 42-52HRC ae (mm) 0.08 0.10 0.12 Hardened die steel 200 7,950 800 6,360 640 5,300 640 SKD11, SLD, DC11 DH102 (1.2344, 1.2379) ap (mm) 0.20 0.25 0.30 55-62HRC ae (mm) 0.08 0.10 0.12 Grey & Nodular 350 13,930 4,180 11,140 3,900 9,280 3,710 cast iron JC8015 FC, FCD (GG, GGG) DH102 ap (mm) 0.20 0.25 0.30 Below 300HB ae (mm) 0.10 0.15 0.20 ℓ: Overhung length, ap: Depth of cut, ae: Pick feed, Vc: Cutting speed, n: Spindle speed, Vf: Feed speed ■ NOTE Overhung length Vc Vf ℓ/Dc (m/min) (mm/min) 1) The cutting parameters to be adjusted according to the machine rigidity or work rigidity. ~3Dc 100% 100% 3Dc or less 2) In case chatter occurrs, recommend to reduce depth of cut or feed speed. 3Dc~5Dc 70% 70% 3) In case of overhung length over 3 x Dc, cutting speed and feed speed to Over 3Dc, up to 5Dc be reduced according to the right table. 5Dc~10Dc 50% 50% C208 4) Use air blow to flash out the chips out. Over 5Dc, up to 10Dc
