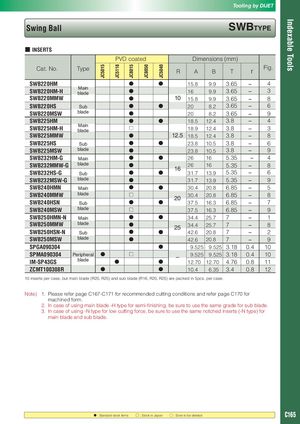

Общий каталог Dijet 2018 - страница 377

Tooling by DIJET Indexable Tools Swing Ball SWBTyPE ■ INSERTS PVD coated Dimensions (mm) JC5015 JC5118 JC8015 JC8050 JC5040 Cat. No. Type Fig. R A B T r SWB220HM ● ● 15.8 9.9 3.65 − 4 Main SWB220HM-H blade ● 16 9.9 3.65 − 3 SWB220MMW ● 10 15.8 9.9 3.65 − 8 SWB220HS Sub ● ● 20 8.2 3.65 − 6 SWB220MSW blade ● 20 8.2 3.65 − 9 SWB225HM ● ● 18.5 12.4 3.8 − 4 Main SWB225HM-H blade □ 18.9 12.4 3.8 − 3 SWB225MMW ● 12.5 18.5 12.4 3.8 − 8 SWB225HS Sub ● ● 23.8 10.5 3.8 − 6 SWB225MSW blade ● 23.8 10.5 3.8 − 9 SWB232HM-G Main ● ● 26 16 5.35 − 4 SWB232MMW-G blade ● 26 16 5.35 − 8 16 SWB232HS-G Sub ● ● 31.7 13.9 5.35 − 6 SWB232MSW-G blade ● 31.7 13.9 5.35 − 9 SWB240HMN Main ● ● 30.4 20.8 6.85 − 5 SWB240MMW blade □ 30.4 20.8 6.85 − 8 20 SWB240HSN Sub ● ● 37.5 16.3 6.85 − 7 SWB240MSW blade □ 37.5 16.3 6.85 − 9 SWB250HMN-N Main ● ● 34.4 25.7 7 − 1 SWB250MMW blade ● 34.4 25.7 7 − 8 25 SWB250HSN-N Sub ● ● 42.6 20.8 7 − 2 SWB250MSW blade ● 42.6 20.8 7 − 9 SPGA090304 ● 9.525 9.525 3.18 0.4 10 SPMA090304 Peripheral ● □ 9.525 9.525 3.18 0.4 10 blade – IM-SP43GS ● ● 12.70 12.70 4.76 0.8 11 ZCMT100308R ● ● 10.4 6.35 3.4 0.8 12 10 inserts per case, but main blade (R20, R25) and sub blade (R16, R20, R25) are packed in 5pcs. per case. Note) 1. Please refer page C167-C171 for recommended cutting conditions and refer page C170 for machined form. 2. In case of using main blade -H type for semi-finishing, be sure to use the same grade for sub blade. 3. In case of using -N type for low cutting force, be sure to use the same notched inserts (-N type) for main blade and sub blade. : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C165
