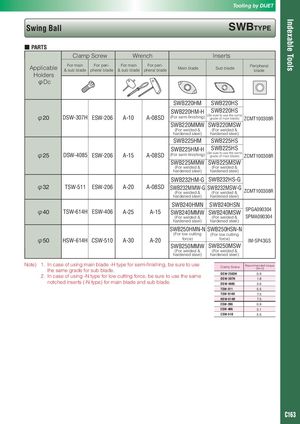

Tooling by DIJET Indexable Tools Swing Ball SWBTyPE ■ PARTS Clamp Screw Wrench Inserts For main For peri- For main For peri- Peripheral Applicable & sub blade pheral blade & sub blade pheral blade Main blade Sub blade blade Holders φDc SWB220HM SWB220HS SWB220HM-H (BeSWB220HS φ20 sure to use the same DSW-307H ESW-206 A-10 A-08SD (For semi-finishing) grade of main blade) ZCMT100308R SWB220MMW SWB220MSW (For welded & (For welded & hardened steel) hardened steel) SWB225HM SWB225HS SWB225HM-H (BeSWB225HS φ25 sure to use the same DSW-4085 ESW-206 A-15 A-08SD (For semi-finishing) grade of main blade) ZCMT100308R SWB225MMW SWB225MSW (For welded & (For welded & hardened steel) hardened steel) SWB232HM-G SWB232HS-G φ32 TSW-511 ESW-206 A-20 A-08SD SWB232MMW-G SWB232MSW-G (For welded & (For welded & ZCMT100308R hardened steel) hardened steel) SWB240HMN SWB240HSN SPGA090304 φ40 TSW-614H ESW-406 A-25 A-15 SWB240MMW SWB240MSW (For welded & (For welded & SPMA090304 hardened steel) hardened steel) SWB250HMN-N SWB250HSN-N (For low cutting (For low cutting φ50 HSW-614H CSW-510 A-30 A-20 force) force) IM-SP43GS SWB250MMW SWB250MSW (For welded & (For welded & hardened steel) hardened steel) Note) 1. In case of using main blade -H type for semi-finishing, be sure to use Clamp Screw Recommended torque (N・m) the same grade for sub blade. DSW-2563H 0.9 2. In case of using -N type for low cutting force, be sure to use the same DSW-307H 1.8 notched inserts (-N type) for main blade and sub blade. DSW-4085 3.6 TSW-511 5.5 TSW-614H 7.5 HSW-614H 7.5 ESW-206 0.9 ESW-406 3.1 CSW-510 5.5 C163
