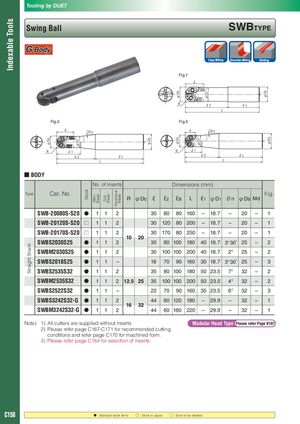

Indexable Tools Straight Shank φDc φD1 Stock Main Blade Sub Blade Peripheral Blade φDs φDcφDc φD1 φD1 φDs φDs Tooling by DIJET Swing Ball SWBTyPE Fig.1 ℓ R ℓ2 ℓs L Fig.2 Fig.3 ℓ θn ℓ θn R ℓ1 R ℓ1 ℓ2 ℓs ℓ2 ℓs L L ■ BODY No. of inserts Dimensions (mm) Type Cat. No. Fig. R φDc ℓ ℓ2 ℓs L ℓ1 φD1 θn φDs Md SWB-20080S-S20 ● 1 1 2 30 80 80 160 – 18.7 – 20 – 1 SWB-20120S-S20 □ 1 1 2 30 120 80 200 – 18.7 – 20 – 1 SWB-20170S-S20 □ 1 1 2 30 170 80 250 – 18.7 – 20 – 1 10 20 SWBS2030S25 ● 1 1 2 30 80 100 180 40 18.7 3°30′ 25 – 2 SWBM2030S25 ● 1 1 2 30 100 100 200 40 18.7 2° 25 – 2 SWBS2018S25 ● 1 1 – 18 70 90 160 30 18.7 3°30′ 25 – 3 SWBS2535S32 ● 1 1 2 35 80 100 180 50 23.5 7° 32 – 2 SWBM2535S32 ● 1 1 2 12.5 25 35 100 100 200 50 23.5 4° 32 – 2 SWBS2522S32 ● 1 1 – 22 70 90 160 35 23.5 6° 32 – 3 SWBS3242S32-G ● 1 1 2 44 60 120 180 – 29.9 – 32 – 1 16 32 SWBM3242S32-G ● 1 1 2 44 60 160 220 – 29.9 – 32 – 1 Note) 1) All cutters are supplied without inserts Modular Head Type Please refer Page B107 2) Please refer page C167-C171 for recommended cutting conditions and refer page C170 for machined form. 3) Please refer page C164 for selection of inserts. C158 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
