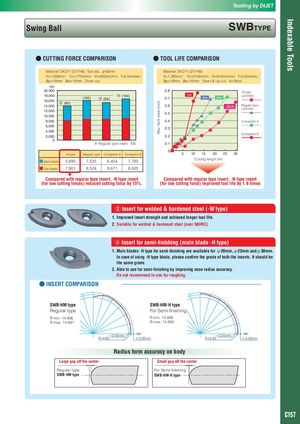

Indexable Tools Max. flank wear (mm) Tooling by DIJET Swing Ball SWBTyPE ● CUTTING FORCE COMPARISON ● TOOL LIFE COMPARISON Material: SKD11 (217HB) Tool dia.: φ50mm Material: SKD11 (217HB) n=1,082min-1 Vc=170m/min Vf=650mm/min f=0.5mm/rev n=1,350min-1 Vc=212m/min Vf=810mm/min f=0.6mm/rev ap=10mm ae=10mm Down cut ap=10mm ae=10mm Down & Up cut Air Blow (N) 20,000 0.8 -N type 18,00016,00014,000※ (85) (100) ※ (94) ※ (104)12,000 12m (JC5040)0.718m26m0.630mRegular type(JC5040)0.5 10,000 8,000 0.4 Competitor A 6,000 0.3 4,000 2,000 0.2 Competitor B 0 ※ Regular type insert: 100 0.1 -N type Regular type Competitor A Competitor B 0 5 10 15 20 25 30 Main blade 5,890 7,525 6,454 7,783 Cutting length (m) Sub blade 7,901 8,524 8,671 8,925 Compared with regular type insert, -N type insert Compared with regular type insert, -N type insert (for low cutting forces) reduced cutting force by 15%. (for low cutting force) improved tool life by 1.6 times ② Insert for welded & hardened steel (-W type) 1. Improved insert strength and achieved longer tool life. 2. Suitable for welded & hardened steel (over 50HRC) ③ Insert for semi-finishing (main blade -H type) 1. Main blades -H type for semi-finishing are available for φ20mm,φ25mm andφ30mm. In case of using -H type blade, please confirm the grade of both the inserts. It should be the same grade. 2. Able to use for semi-finishing by improving nose radius accuracy. Do not recommend to use for roughing. ● INSERT COMPARISON SWB-HM type SWB-HM-H type Regular type For Semi-finishing R min. 14.906 R min. 14.938 R max. 14.981 R max. 14.983 – 0.05mm 180° – 0.05mm 180° R14.95 + 0.05mm R14.95 + 0.05mm Radius form accuracy on body Large gap off the center Small gap off the center Regular type For Semi-finishing SWB-HM type SWB-HM-H type C157
