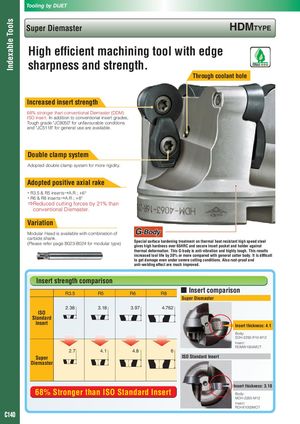

Indexable Tools Tooling by DIJET Super Diemaster HDMTYPE High efficient machining tool with edge sharpness and strength. Through coolant hole Increased insert strength 68% stronger than conventional Diemaster (DDM) ISO insert. In addition to conventional insert grades, Tough grade "JC8050" for unfavourable conditions and "JC5118" for general use are available. Double clamp system Adopted double clamp system for more rigidity. Adopted positive axial rake ・R3.5 & R5 inserts→A.R.; +6° ・R6 & R8 inserts→A.R.; +8° ⇒Reduced cutting forces by 21% than conventional Diemaster. Variation Modular Head is available with combination of carbide shank.(Please refer page B023-B024 for modular type)Special surface hardening treatment on thermal heat resistant high speed steelgives high hardness over 65HRC and secure insert pocket and holder against thermal deformation. This G-body is anti-vibration and highly tough. This results increased tool life by 30% or more compared with general cutter body. It is difficult to get damage even under severe cutting conditions. Also rust-proof and anti-welding effect are much improved. Insert strength comparison R3.5 R5 R6 R8 ■ Insert comparison Super Diemaster 2.38 3.18 3.97 4.762 ISO Standard Insert Insert thickness: 4.1 Body: SDH-2250-R10-M12 Insert: RDMW1004MOT 2.7 4.1 4.8 6 Super ISO Standard Insert Diemaster Insert thickness: 3.18 68% Stronger than ISO Standard Insert Body: MDH-2250-M12 Insert: RDHX1003MOT C140
