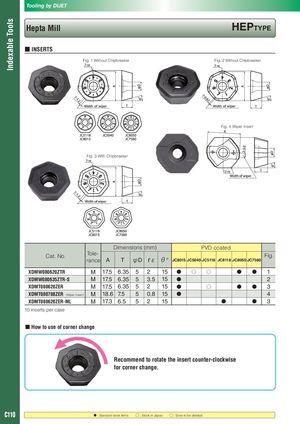

Indexable Tools Tooling by DIJET Hepta Mill HEPTyPE ■ INSERTS Fig. 1 Without Chipbreaker Fig. 2 Without Chipbreaker Fig. 4 Wiper Insert Fig. 3 With Chipbreaker Dimensions (mm) PVD coated Cat. No. Tole-ranceA T φD rε θ° JC8015 JC5040 JC5118 JC8118 JC8050 JC7560 Fig. XDMW080620ZTR M 17.5 6.35 5 2 15 ● ○ ○ ● ● 1 XDMW080635ZTR-S M 17.5 6.35 5 3.5 15 ● 2 XDMT080620ZER M 17.5 6.35 5 2 15 ● ○ ● ● 3 XDMT080708ZER (Wiper Insert) M 18.6 7.5 5 0.8 15 ● 4 XDMT080620ZER-ML M 17.3 6.5 5 2 15 ● ● 3 10 inserts per case ■ How to use of corner change Recommend to rotate the insert counter-clockwise for corner change. C110 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
