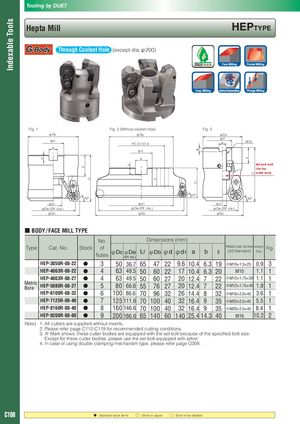

Общий каталог Dijet 2018 - страница 320

Tooling by DIJET Indexable Tools Hepta Mill HEPTyPE Through Coolant Hole (except dia.φ200) Fig. 1 Fig. 2 (Without coolant hole) Fig. 3 φDb φDb φDb φd φd a M10 P.C.D.101.6 a φd b ℓ a b Set bolt built b ℓ into the cutter body Lf Lf ℓ Lf 42° 42° 42° φd1 φd1 φd1 φDe (Eff. dia.) φDe (Eff. dia.) φDe (Eff. dia.) φDc φDc φDc ■ BODY / FACE MILL TYPE No. Dimensions (mm) Head cap screw weight Type Cat. No. Stock of Fig. φDc φDe Lf φDb φd φd1 a b ℓ (JIS Standard) (kg) flutes (Eff. dia.) HEP-3050R-08-22 ● 3 50 36.7 65 47 22 9.6 10.4 6.3 19 ※M10×1.5×25 0.9 3 HEP-4063R-08-22 ● 4 63 49.5 50 60 22 17 10.4 6.3 20 M10 1.1 1 HEP-4063R-08-27 ● 4 63 49.5 50 60 27 20 12.4 7 22 ※M12×1.75×30 1.1 1 Metric Bore HEP-5080R-08-27 ● 5 80 66.6 55 76 27 20 12.4 7 22 ※M12×1.75×40 1.9 1 HEP-6100R-08-32 ● 6 100 86.6 70 96 32 26 14.4 8 32 ※M16×2.0×45 3.6 1 HEP-7125R-08-40 ● 7 125 111.6 70 100 40 32 16.4 9 35 ※M20×2.5×45 5.5 1 HEP-8160R-08-40 ● 8 160 146.6 70 100 40 32 16.4 9 35 ※M20×2.5×45 8.4 1 HEP-9200R-08-60 ● 9 200 186.6 65 140 60 140 25.4 14.3 40 M16 10.2 2 Note) 1. All cutters are supplied without inserts. 2. Please refer page C112-C119 for recommended cutting conditions. 3. ※ Mark shows: these cutter bodies are equipped with the set bolt because of the specified bolt size. Except for these cutter bodies, please use the set bolt equipped with arbor. 4. In case of using double clamping mechanism type, please refer page C009. C108 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
