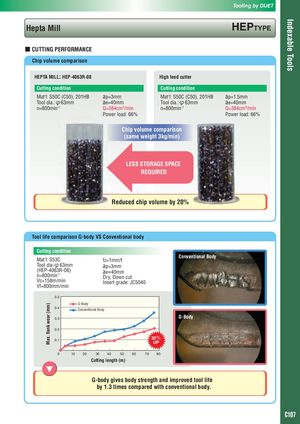

Indexable Tools Tooling by DIJET Hepta Mill HEPTYPE ■ CUTTING PERFORMANCE Chip volume comparison HEPTA MILL: HEP-4063R-08 High feed cutter Cutting condition Cutting condition Mat‘l: S50C (C50), 201HB ap=3mm Mat‘l: S50C (C50), 201HB ap=1.5mm Tool dia.:φ63mm ae=40mm Tool dia.:φ63mm ae=40mm n=800min-1 Q=384cm3/min n=800min-1 Q=384cm3/min Power load: 66% Power load: 66% Chip volume comparison (same weight 3kg/min) LESS STORAGE SPACE REQUIRED Reduced chip volume by 20% Tool life comparison G-body VS Conventional body Cutting condition Mat'l: S53C fz=1mm/t Conventional Body Tool dia:φ63mm ap=3mm (HEP-4063R-08)n=800min-1Vc=158m/minVf=800mm/min ae=40mmDry, Down cutInsert grade: JC5040 0.5 G-Body 0.4 Conventional Body 0.3 G-Body 0.2 0.1 30%UP 0 10 20 30 40 50 60 70 80 Cutting length (m) G-body gives body strength and improved tool life by 1.3 times compared with conventional body. C107 Max. flank wear (mm)
