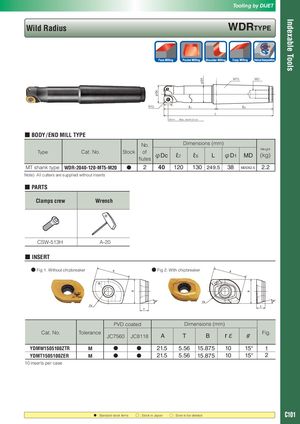

Tooling by DIJET Indexable Tools Wild Radius WDRTyPE φD1 MT5 MD φDc R10 ℓ2 ℓs L 18mm Max. depth of cut ■ BODY / END MILL TYPE No. Dimensions (mm) Weight Type Cat. No. Stock of φDc ℓ2 ℓs L φD1 MD (kg) flutes MT shank type WDR-2040-120-MT5-M20 ● 2 40 120 130 249.5 38 M20X2.5 2.2 Note) All cutters are supplied without inserts ■ PARTS Clamps crew Wrench CSW-513H A-20 ■ INSERT ● Fig 1. Without chipbreaker ● Fig 2. With chipbreaker PVD coated Dimensions (mm) Cat. No. Tolerance Fig. JC7560 JC8118 A T B rε YDMW1505100ZTR M ● ● 21.5 5.56 15.875 10 15° 1 YDMT1505100ZER M ● ● 21.5 5.56 15.875 10 15° 2 10 inserts per case : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C101
