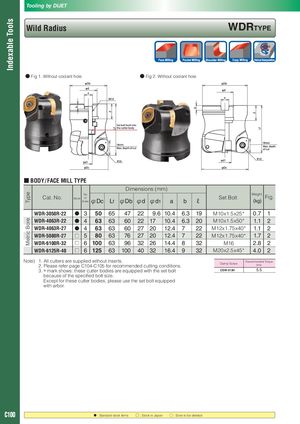

Indexable Tools TypeMetric Bore Tooling by DIJET Wild Radius WDRTyPE ● Fig 1. Without coolant hole ● Fig 2. Without coolant hole ■ BODY / FACE MILL TYPE Dimensions (mm) No.Cat. No.StockofflutesφDcLfφDb φd φd1 a b ℓ Set Bolt Weight(kg) Fig. WDR-3050R-22 ● 3 50 65 47 22 9.6 10.4 6.3 19 M10x1.5x25* 0.7 1 WDR-4063R-22 ● 4 63 63 60 22 17 10.4 6.3 20 M10x1.5x50* 1.1 2 WDR-4063R-27 ● 4 63 63 60 27 20 12.4 7 22 M12x1.75x40* 1.1 2 WDR-5080R-27 □ 5 80 63 76 27 20 12.4 7 22 M12x1.75x40* 1.7 2 WDR-6100R-32 □ 6 100 63 96 32 26 14.4 8 32 M16 2.8 2 WDR-6125R-40 □ 6 125 63 100 40 32 16.4 9 32 M20x2.5x45* 4.0 2 Note) 1. All cutters are supplied without inserts.2. Please refer page C104-C105 for recommended cutting conditions. Clamp Screw Recommended TorqueN・m 3. * mark shows: these cutter bodies are equipped with the set bolt CSW-513H 5.5 because of the specified bolt size. Except for these cutter bodies, please use the set bolt equipped with arbor. C100 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
