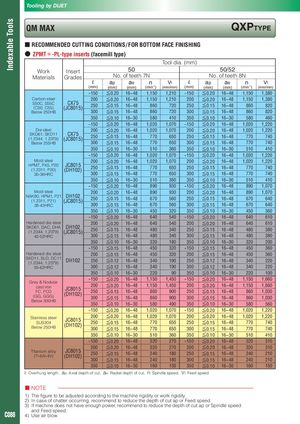

Tooling by DIJET Indexable Tools QM MAX QXPTyPE ■ RECOMMENDED CUTTING CONDITIONS / FOR BOTTOM FACE FINISHING ● ZPMT＊-PL-type inserts (facemill type) Tool dia. (mm) Work Insert 50 50/52 Materials Grades No. of teeth 7N No. of teeth 8N ℓ ap ae n Vf ℓ ap ae n Vf (mm) (mm) (mm) (min-1) (mm/min) (mm) (mm) (mm) (min-1) (mm/min) ~150 ≦0.20 16~48 1,150 1,210 ~150 ≦0.20 16~48 1,150 1,380 Carbon steel 200 ≦0.20 16~48 1,150 1,210 200 ≦0.20 16~48 1,150 1,380 S50C, S55C CX75 250 ≦0.15 16~48 860 720 250 ≦0.15 16~48 860 820 (C50, C55) (JC8015) Below 250HB 300 ≦0.15 16~48 860 720 300 ≦0.15 16~48 860 820 350 ≦0.10 16~30 580 410 350 ≦0.10 16~30 580 460 ~150 ≦0.20 16~48 1,020 1,070 ~150 ≦0.20 16~48 1,020 1,220 Die steel 200 ≦0.20 16~48 1,020 1,070 200 ≦0.20 16~48 1,020 1,220 SKD61, SKD11 CX75 250 ≦0.15 16~48 770 650 250 ≦0.15 16~48 770 740 (1.2344, 1.2379) (JC8015) Below 255HB 300 ≦0.15 16~48 770 650 300 ≦0.15 16~48 770 740 350 ≦0.10 16~30 510 360 350 ≦0.10 16~30 510 410 ~150 ≦0.20 16~48 1,020 1,070 ~150 ≦0.20 16~48 1,020 1,220 Mold steel 200 ≦0.20 16~48 1,020 1,070 200 ≦0.20 16~48 1,020 1,220 HPM7, PX5, P20 JC8015 250 ≦0.15 16~48 770 650 250 ≦0.15 16~48 770 740 (1.2311, P20) (DH102) 30-36HRC 300 ≦0.15 16~48 770 650 300 ≦0.15 16~48 770 740 350 ≦0.10 16~30 510 360 350 ≦0.10 16~30 510 410 ~150 ≦0.20 16~48 890 930 ~150 ≦0.20 16~48 890 1,070 Mold steel 200 ≦0.20 16~48 890 930 200 ≦0.20 16~48 890 1,070 NAK80, HPM1, P21 DH102 250 ≦0.15 16~48 670 560 250 ≦0.15 16~48 670 640 (1.2311, P21) (JC8015) 38-43HRC 300 ≦0.15 16~48 670 560 300 ≦0.15 16~48 670 640 350 ≦0.10 16~30 450 320 350 ≦0.10 16~30 450 360 ~150 ≦0.20 16~48 640 540 ~150 ≦0.20 16~48 640 610 Hardened die steel 200 ≦0.20 16~48 640 540 200 ≦0.20 16~48 640 610 SKD61, DAC, DHA DH102 (1.2344, 1.2379) (JC8015) 250 ≦0.15 16~48 480 340 250 ≦0.15 16~48 480 380 42-52HRC 300 ≦0.15 16~48 480 340 300 ≦0.15 16~48 480 380 350 ≦0.10 16~30 320 180 350 ≦0.10 16~30 320 200 ~150 ≦0.15 16~48 450 320 ~150 ≦0.15 16~48 450 360 Hardened die steel 200 ≦0.15 16~48 450 320 200 ≦0.15 16~48 450 360 SKD11, SLD, DC11 (1.2344, 1.2379) DH102 250 ≦0.12 16~48 340 190 250 ≦0.12 16~48 340 220 55-62HRC 300 ≦0.12 16~48 340 190 300 ≦0.12 16~48 340 220 350 ≦0.10 16~30 220 90 350 ≦0.10 16~30 220 100 ~150 ≦0.20 16~48 1,150 1,450 ~150 ≦0.20 16~48 1,150 1,660 Grey & Nodular cast iron 200 ≦0.20 16~48 1,150 1,450 200 ≦0.20 16~48 1,150 1,660 FC, FCD JC8015 250 ≦0.15 16~48 860 900 250 ≦0.15 16~48 860 1,030 (GG, GGG) (DH102) 300 ≦0.15 16~48 860 900 300 ≦0.15 16~48 860 1,030 Below 300HB 350 ≦0.10 16~30 580 490 350 ≦0.10 16~30 580 560 ~150 ≦0.20 16~48 1,020 1,070 ~150 ≦0.20 16~48 1,020 1,220 Stainless steel 200 ≦0.20 16~48 1,020 1,070 200 ≦0.20 16~48 1,020 1,220 SUS304 JC8015 250 ≦0.15 16~48 770 650 250 ≦0.15 16~48 770 740 Below 250HB (DH102) 300 ≦0.15 16~48 770 650 300 ≦0.15 16~48 770 740 350 ≦0.10 16~30 510 360 350 ≦0.10 16~30 510 410 ~150 ≦0.20 16~48 320 270 ~150 ≦0.20 16~48 320 310 200 ≦0.20 16~48 320 270 200 ≦0.20 16~48 320 310 Titanium alloy JC8015 250 ≦0.15 16~48 240 180 250 ≦0.15 16~48 240 210 (Ti-6Al-4V) (DH102) 300 ≦0.15 16~48 240 180 300 ≦0.15 16~48 240 210 350 ≦0.10 16~30 160 130 350 ≦0.10 16~30 160 150 ℓ: Overhung length, ap: Axial depth of cut, ae: Radial depth of cut, n: Spindle speed, Vf: Feed speed ■ NOTE 1) The figure to be adjusted according to the machine rigidity or work rigidity. 2) In case of chatter occurring, recommend to reduce the depth of cut ap or Feed speed. 3) If machine does not have enough power, recommend to reduce the depth of cut ap or Spindle speed and Feed speed. C088 4) Use air blow.
