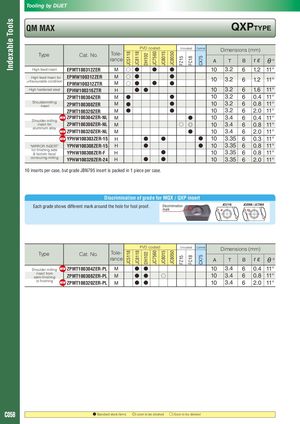

Tooling by DIJET Indexable Tools QM MAX QXPTyPE PVD coated Uncoated Cermet Dimensions (mm) JC5118 JC8118 JC7560 JC8015 JC8050 Type Tole- DH102 Cat. No. CX75 FC18 FZ15 rance A T B rε θ° High feed insert EPMT100312ZER M ○ ● ● ● 10 3.2 6 1.2 11° High feed insert for EPMW100312ZER M ○ ● ● unfavourable condition 10 3.2 6 1.2 11° EPMW100312ZTR M ○ ● ● ● High hardened steel EPHW100316ZTR H ● ● 10 3.2 6 1.6 11° ZPMT100304ZER M ● ● 10 3.2 6 0.4 11° Shouldermilling insert ZPMT100308ZER M ● ● 10 3.2 6 0.8 11° ZPMT100320ZER M ● ● 10 3.2 6 2.0 11° Shoulder milling ZPMT100304ZER-NL M ● 10 3.4 6 0.4 11° insert for ZPMT100308ZER-NL M ○ ◎ 10 3.4 6 0.8 11° aluminum alloy ZPMT100320ZER-NL M ● 10 3.4 6 2.0 11° YPHW100303ZER-15 H ● ● ● 10 3.35 6 0.3 11° “MIRROR INSERT” YPHW100308ZER-15 H ● ● 10 3.35 6 0.8 11° for finishing side & bottom face/ YPHW100308ZER-F H ● 10 3.35 6 0.8 11° contouring milling YPHW100320ZER-24 H ● ● 10 3.35 6 2.0 11° 10 inserts per case, but grade JBN795 insert is packed in 1 piece per case. Discrimination of grade for MQX / QXP insert JC5118 JC8050 / JC7560 Each grade shows different mark around the hole for fool proof. Discrimination mark PVD coated Uncoated Cermet Dimensions (mm) JC5118 JC8118 JC7560 JC8015 JC8050 Tole- DH102 Type Cat. No. CX75 FC18 FZ15 rance A T B rε θ° Shoulder milling ZPMT100304ZER-PL M ● ● 10 3.4 6 0.4 11° insert from semi-finishing ZPMT100308ZER-PL M ● ● ○ 10 3.4 6 0.8 11° to finishing ZPMT100320ZER-PL M ● ● 10 3.4 6 2.0 11° C058 ● Standard stock items ◎: soon to be stocked ○: Soon to be deleted
