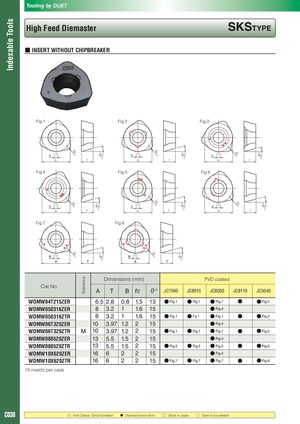

Indexable Tools Tolerance θ° θ°θ° θ°θ°θ° θ° θ° rεrεrε rεrεrε rεrε Tooling by DIJET High Feed Diemaster SKSTyPE ■ INSERT WITHOUT CHIPBREAKER Fig.1 Fig.2 Fig.3 B B B A T A T A T Fig.4 Fig.5 Fig.6 B B B A T A T A T Fig.7 Fig.8 B B A T A T Dimensions (mm) PVD coated Cat.No. A T B rε θ° JC7560 JC8015 JC8050 JC8118 JC5040 WOMW04T215ZER 6.5 2.8 0.8 1.5 13 ● Fig.1 ● Fig.1 ● Fig.1 ● ● Fig.2 WDMW050316ZER 8 3.2 1 1.6 15 ● Fig.4 WDMW050316ZTR 8 3.2 1 1.6 15 ● Fig.1 ● Fig.1 ● Fig.1 ● ● Fig.2 WDMW06T320ZER 10 3.97 1.2 2 15 ● Fig.4 WDMW06T320ZTR M 10 3.97 1.2 2 15 ● Fig.1 ● Fig.1 ● Fig.1 ● ● Fig.2 WDMW080520ZER 13 5.5 1.5 2 15 ● Fig.4 WDMW080520ZTR 13 5.5 1.5 2 15 ● Fig.5 ● Fig.5 ● Fig.5 ● ● Fig.6 WDMW10X620ZER 16 6 2 2 15 ● Fig.4 WDMW10X620ZTR 16 6 2 2 15 ● Fig.7 ● Fig.7 ● Fig.7 ● ● Fig.8 10 inserts per case C038 ◎ : First Choice, Good Condition : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
