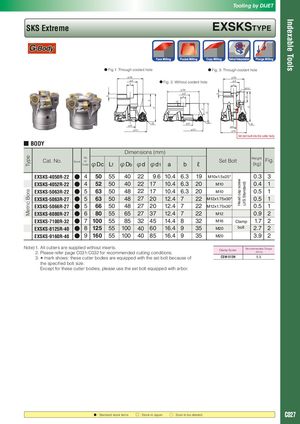

Tooling by DIJET Indexable Tools SKS Extreme EXSKSTyPE Fig.1: Through coolant hole Fig. 3: Through coolant hole φDb φDb φd φd a Fig. 2: Without coolant hole a M10 φDb φd b a b ℓ ℓ b Lf Lf ℓ Lf φd1 R2 R2 R2 φd1 φd1 φDc φDc φDc Set bolt built into the cutter body ■ BODY Dimensions (mm) Type No. Weight Cat. No. of Set Bolt Fig. φDc Lf φDb φd φd1 Stock flutes a b ℓ (kg) EXSKS-4050R-22 4 50 55 40 22 9.6 10.4 6.3 19 M10x1.5x25* 0.3 3 Head cap screw 22 (JIS Standard) EXSKS-4052R-22 4 52 50 40 17 10.4 6.3 20 M10 0.4 1 5 63 50 48 22 17 10.4 6.3 20 0.5 1 Metric Bore EXSKS-5063R-22 M10 EXSKS-5063R-27 5 63 50 48 27 20 12.4 7 22 M12x1.75x30* 0.5 1 EXSKS-5066R-27 5 66 50 48 27 20 12.4 7 22 M12x1.75x30* 0.5 1 EXSKS-6080R-27 6 80 55 65 27 37 12.4 7 22 M12 0.9 2 EXSKS-7100R-32 7 100 55 85 32 45 14.4 8 32 M16 Clamp 1.7 2 EXSKS-8125R-40 8 125 55 100 40 60 16.4 9 35 M20 bolt 2.7 2 EXSKS-9160R-40 9 160 55 100 40 85 16.4 9 35 M20 3.9 2 Note) 1. All cutters are supplied without inserts. Clamp Screw Recommended Torque (N·m) 2. Please refer page C031-C032 for recommended cutting conditions. 3. mark shows: these cutter bodies are equipped with the set bolt because of CSW-513H 5.5 * the specified bolt size. Except for these cutter bodies, please use the set bolt equipped with arbor. : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C027
