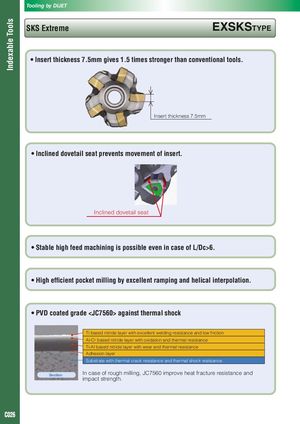

Indexable Tools Tooling by DIJET SKS Extreme EXSKSTyPE • Insert thickness 7.5mm gives 1.5 times stronger than conventional tools. Insert thickness 7.5mm • Inclined dovetail seat prevents movement of insert. Inclined dovetail seat • Stable high feed machining is possible even in case of L/Dc>6. • High efficient pocket milling by excellent ramping and helical interpolation. • PVD coated grade against thermal shock Ti based nitride layer with excellent welding resistance and low friction Al-Cr based nitride layer with oxidation and thermal resistance Ti-Al based nitride layer with wear and thermal resistance Adhesion layer Substrate with thermal crack resistance and thermal shock resistance Section In case of rough milling, JC7560 improve heat fracture resistance and impact strength. C026
