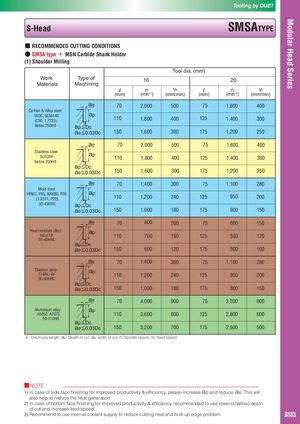

Общий каталог Dijet 2018 - страница 199

Tooling by DIJET


Modular Head Series
S-Head SMSATYPE
■ RECOMMENDED CUTTING CONDITIONS
● SMSA type ＋ MSN Carbide Shank Holder
(1) Shoulder Milling
Tool dia. (mm)
Work Type of 16 20
Materials Machining
ℓ n Vf ℓ n Vf
(mm) (min-1) (mm/min) (mm) (min-1) (mm/min)
ae 70 2,000 500 75 1,600 400
Carbon & Alloy steel
S50C, SCM440 ap
(C50, 1.7223)
110 1,800 400 125 1,400 300
Below 250HB ap≦Dc
ae≦0.03Dc 150 1,600 300 175 1,200 250
ae 70 2,000 500 75 1,600 400
Stainless steel
SUS304 ap
110 1,800 400 125 1,400 300
Below 250HB
ap≦Dc
ae≦0.03Dc 150 1,600 300 175 1,200 250
ae 70 1,400 300 75 1,100 280
Mold steel
HPM7, PX5, NAK80, P20 ap
(1.2311, P20) 110 1,200 240 125 950 200
30-43HRC ap≦Dc
ae≦0.03Dc 150 1,000 180 175 800 150
ae 70 800 200 75 600 150
Heat resistant alloy ap
Inco718 110 700 150 125 550 120
35-43HRC
ap≦Dc
ae≦0.03Dc 150 600 120 175 500 100
ae 70 1,400 300 75 1,100 280
Titanium alloy
Ti-6AL-4V
ap
110 1,200 240 125 950 200
35-43HRC
ap≦Dc
ae≦0.03Dc 150 1,000 180 175 800 150
ae 70 4,000 900 75 3,200 800
Aluminium alloy ap
A5052, A7075 110 3,600 800 125 2,800 600
50-110HB
ap≦Dc
ae≦0.03Dc 150 3,200 700 175 2,500 500
ℓ: Overhung length, ap: Depth of cut, ae: width of cut, n: Spindle speed, Vf: Feed speed


■NOTE
1) In case of side face finishing for improved productivity & efficiency, please increase ap and reduce ae. This will
also help to reduce the heat generation.
2) In case of bottom face finishing for improved productivity & efficiency, recommended to use lower (shallow) depth
of cut and increase feed speed.
3) Recommend to use internal coolant supply to reduce cutting heat and built up edge problem. B183
