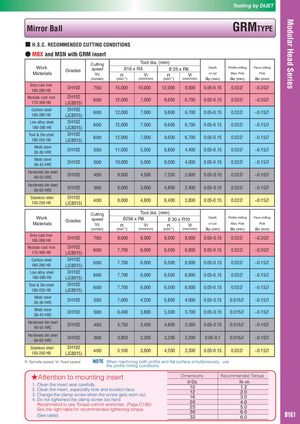

■ H.S.C. RECOMMENDED CUTTING CONDITIONS

• MBX and MSN with GRM insert

Tool dia. (mm) Cutting

Work speed 016 x R5 0 25 x R6 Depth Pr ofile milling Face milling

Grades

Materials Vc n V n V of cut Max. Pick Pick

f f

(m/min) (min-1) (mm/min) (min-1) (mm/min) ap (mm) ae (mm) ae (mm)

Grey cast iron

DH102 750 15,000 10,000 12,000 9,000 0.05-0.15 0.02D ~0.20D

160-260 HB Nodular cast iron DH102

600 12,000 7,000 9,600 6,700 0.05-0.15 0.02D ~0.20D

170-300 HB (JC8015) Carbon steel DH102

600 12,000 7,000 9,600 6,700 0.05-0.15 0.02D ~0.15D

180-280 HB (JC8015) Low alloy steel DH102

600 12,000 7,000 9,600 6,700 0.05-0.15 0.02D ~0.15D

180-280 HB (JC8015) Tool & Die steel DH102

600 12,000 7,000 9,600 6,700 0.05-0.15 0.02D ~0.15D

180-255 HB (JC8015) Mold steel

DH102 550 11,000 5,500 8,800 4,400 0.05-0.15 0.02D ~0.15D

30-36 HRC Mold steel

DH102 500 10,000 5,000 8,000 4,000 0.05-0.15 0.02D ~0.15D

38-43 HRC Hardened die steel

DH102 450 9,000 4,500 7,200 3,600 0.05-0.15 0.02D ~0.10D

40-55 HRC Hardened die steel

DH102 300 6,000 3,000 4,800 2,400 0.05-0.15 0.02D ~0.10D

56-63 HRC Stainless steel DH102

400 8,000 4,800 6,400 3,800 0.05-0.15 0.02D ~0.15D

150-250 HB (JC8015) Tool dia. (mm) Cutting

Work speed 0256 x R8 0 30 x R10 Depth Profile milling Face milling

Grades

Materials Vc n V n V of cut Max. Pick Pick

f f

(m/min) (min-1) (mm/min) (min-1) (mm/min) ap (mm) ae (mm) ae (mm)

Grey cast iron

DH102 750 9,600 8,000 8,000 8,000 0.05-0.15 0.02D ~0.20D

160-260 HB Nodular cast iron DH102

600 7,700 6,000 6,500 6,000 0.05-0.15 0.02D ~0.20D

170-300 HB (JC8015) Carbon steel DH102

600 7,700 6,000 6,500 6,000 0.05-0.15 0.02D ~0.15D

180-280 HB (JC8015) Low alloy steel DH102

600 7,700 6,000 6,500 6,000 0.05-0.15 0.02D ~0.15D

180-280 HB (JC8015) Tool & Die steel DH102

600 7,700 6,000 6,500 6,000 0.05-0.15 0.02D ~0.15D

180-255 HB (JC8015) Mold steel

DH102 550 7,000 4,200 5,800 4,000 0.05-0.15 0.015D ~0.15D

30-36 HRC Mold steel

DH102 500 6,400 3,800 5,300 3,700 0.05-0.15 0.015D ~0.15D

38-43 HRC Hardened die steel

DH102 450 5,750 3,450 4,800 3,360 0.05-0.15 0.015D ~0.10D

40-55 HRC Hardened die steel

DH102 300 3,850 2,300 3,200 2,200 0.05-0.1 0.015D ~0.10D

56-63 HRC Stainless steel DH102

400 5,100 3,600 4,200 3,300 0.05-0.15 0.02D ~0.15D

150-250 HB (JC8015)

n: Spindle speed, V : Feed speed NOTE When machining both profile and flat surface simultaneously, use

f the profile milling conditions.

★Attention to mounting insert Dimensions Recommended Torque

φDc N~m

1. Clean the insert seat carefully. 10 1.2

2. Clean the insert, especially hole and location face. 4. Do not tightened the clamp screw too hard. Recommend to use Torque control wrenches. (Page C180) See the right table for recommended tightening torque.
