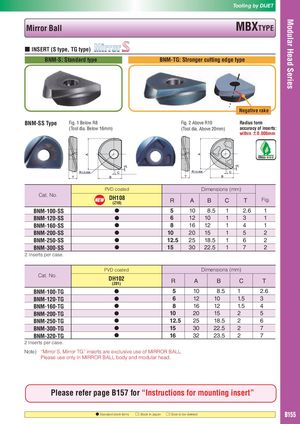

■ INSERT (S type, TG type) BNM-S: Standard type BNM-TG: Stronger cutting edge type
Negative rake
| BNM-SS Type | Fig. 1 Below R8 | Fig. 2 Above R10 | Radius form |
| (Tool dia. Below 16mm) | (Tool dia. Above 20mm) | accuracy of inserts: |
within ±0.006mm
PVD coated Dimensions (mm) Cat. No. DH108
R A B C T Fig.
(Z10)
| BNM-100-SS | ● | 5 | 10 | 8.5 | 1 | 2.6 | 1 |
| BNM-120-SS | ● | 6 | 12 | 10 | 1 | 3 | 1 |
| BNM-160-SS | ● | 8 | 16 | 12 | 1 | 4 | 1 |
| BNM-200-SS | ● | 10 | 20 | 15 | 1 | 5 | 2 |
| BNM-250-SS | ● | 12.5 | 25 | 18.5 | 1 | 6 | 2 |
| BNM-300-SS | ● | 15 | 30 | 22.5 | 1 | 7 | 2 |
2 Inserts per case.
PVD coated Dimensions (mm) Cat. No. DH102
R A B C T
(Z01)
| BNM-100-TG | ● | 5 | 10 | 8.5 | 1 | 2.6 |
| BNM-120-TG | ● | 6 | 12 | 10 | 1.5 | 3 |
| BNM-160-TG | ● | 8 | 16 | 12 | 1.5 | 4 |
| BNM-200-TG | ● | 10 | 20 | 15 | 2 | 5 |
| BNM-250-TG | ● | 12.5 | 25 | 18.5 | 2 | 6 |
| BNM-300-TG | ● | 15 | 30 | 22.5 | 2 | 7 |
| BNM-320-TG | ● | 16 | 32 | 23.5 | 2 | 7 |
2 Inserts per case. Note) “Mirror S, Mirror TG” inserts are exclusive use of MIRROR BALL. Please use only in MIRROR BALL body and modular head.
