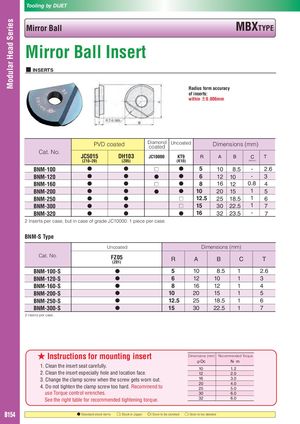

Mirror Ball Insert
■ InSERTS
Radius form accuracy
of inserts: within ±0.006mm
PVD coated Diamond Uncoated Dimensions (mm)
coated Cat. No.
| JC5015 | DH103 | JC10000 | KT9 | R | A | B | C | T | ||
| (Z10~20) | (Z05) | (K10) | (JBN245) | |||||||
| BNM-100 | ● | ● | □ | ● | 5 | 10 | 8.5 | - | 2.6 | |
| BNM-120 | ● | ● | ● | ● | 6 | 12 | 10 | - | 3 | |
| BNM-160 | ● | ● | □ | ● | 8 | 16 | 12 | 0.8 | 4 | |
| BNM-200 | ● | ● | ● | ● | 10 | 20 | 15 | 1 | 5 | |
| BNM-250 | ● | ● | □ | 12.5 | 25 | 18.5 | 1 | 6 | ||
| BNM-300 | ● | ● | □ | 15 | 30 | 22.5 | 1 | 7 | ||
| BNM-320 | ● | ● | ● | 16 | 32 | 23.5 | - | 7 |
2 Inserts per case, but in case of grade JC10000: 1 piece per case. BNM-S Type Uncoated Dimensions (mm) Cat. No. FZ05
R A B C T
(Z01)
| BNM-100-S | ● | 5 | 10 | 8.5 | 1 | 2.6 |
| BNM-120-S | ● | 6 | 12 | 10 | 1 | 3 |
| BNM-160-S | ● | 8 | 16 | 12 | 1 | 4 |
| BNM-200-S | ● | 10 | 20 | 15 | 1 | 5 |
| BNM-250-S | ● | 12.5 | 25 | 18.5 | 1 | 6 |
| BNM-300-S | ● | 15 | 30 | 22.5 | 1 | 7 |
2 inserts per case.
★ Instructions for mounting insert
Dimensions (mm) Recommended Torque φDc N· m 1. Clean the insert seat carefully. 10 1.2
| 2. Clean the insert especially hole and location face. | 12 | 2.0 |
| 3. Change the clamp screw when the screw gets worn out. | 16 | 3.0 |
4. Do not tighten the clamp screw too hard. Recommend to
use Torque control wrenches. 30 6.0
B154 ● Standard stock items □: Stock in Japan ◎: Soon to be stocked ○: Soon to be deleted
