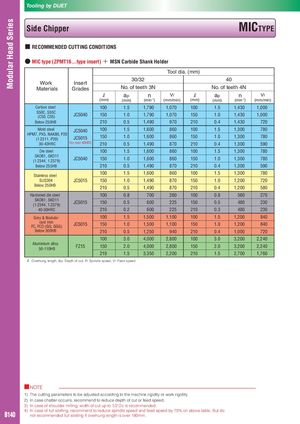

Tooling by DIJET
Modular Head Series
Side Chipper MICTYPE
■ RECOMMENDED CUTTING CONDITIONS
● MIC type (ZPMT16...type insert) ＋ MSN Carbide Shank Holder
Tool dia. (mm)
30/32 40
Work Insert
Materials Grades No. of teeth 3N No. of teeth 4N
ℓ ap n Vf ℓ ap n Vf
(mm) (mm) (min-1) (mm/min) (mm) (mm) (min-1) (mm/min)
Carbon steel 100 1.5 1,790 1,070 100 1.5 1,430 1,000
S50C, S55C
(C50, C55) JC5040 150 1.0 1,790 1,070 150 1.0 1,430 1,000
Below 250HB 210 0.5 1,490 970 210 0.4 1,430 720
Mold steel JC5040 100 1.5 1,600 860 100 1.5 1,300 780
HPM7, PX5, NAK80, P20
(1.2311, P20) JC5015 150 1.0 1,600 860 150 1.0 1,300 780
30-43HRC For over 40HRC 210 0.5 1,490 870 210 0.4 1,300 590
Die steel 100 1.5 1,600 860 100 1.5 1,300 780
SKD61, SKD11
(1.2344, 1.2379)
JC5040 150 1.0 1,600 860 150 1.0 1,300 780
Below 255HB 210 0.5 1,490 870 210 0.4 1,300 590
Stainless steel
100 1.5 1,600 860 100 1.5 1,300 780
SUS304 JC5015 150 1.0 1,490 870 150 1.0 1,200 720
Below 250HB
210 0.5 1,490 870 210 0.4 1,200 580
Hardened die steel 100 0.8 700 260 100 0.8 560 270
SKD61, SKD11
(1.2344, 1.2379)
JC5015 150 0.5 600 225 150 0.5 480 230
40-50HRC 210 0.2 600 225 210 0.3 480 230
Grey & Nodular 100 1.5 1,500 1,100 100 1.5 1,200 840
cast iron
FC, FCD (GG, GGG) JC5015 150 1.0 1,500 1,100 150 1.0 1,200 840
Below 300HB 210 0.5 1,250 940 210 0.4 1,000 720
100 3.0 4,000 2,800 100 3.0 3,200 2,240
Aluminium alloy
50-110HB
FZ15 150 2.0 4,000 2,800 150 2.0 3,200 2,240
210 1.5 3,350 2,200 210 1.5 2,700 1,760
ℓ: Overhung length, ap: Depth of cut, n: Spindle speed, Vf: Feed speed
■NOTE
1) The cutting parameters to be adjusted according to the machine rigidity or work rigidity.
2) In case chatter occurrs, recommend to reduce depth of cut or feed speed.
3) In case of shoulder milling, width of cut up to 1/2 Dc is recommended.
4) In case of full slotting, recommend to reduce spindle speed and feed speed by 70% on above table. But do
B140 not recommended full slotting if overhung length is over 180mm.
