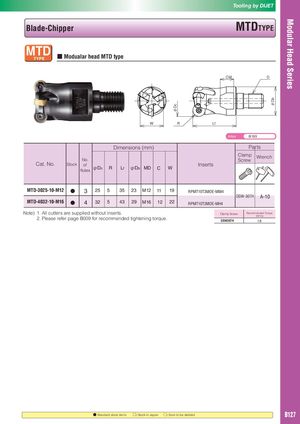

Tooling by DIJET Blade-Chipper MTDTYPE MTD ■ Modualar head MTD type TYPE CM D φDb φDc W R Lf Arbor B193 Dimensions (mm) Parts Clamp Wrench No. Screw Cat. No. Stock of Inserts flutes φDc R Lf φDb MD C W MTD-3025-10-M12 ● 3 25 5 35 23 M12 11 19 RPMT10T3MOE-MM4 DSW-307H A-10 MTD-4032-10-M16 ● 4 32 5 43 29 M16 12 22 RPMT10T3MOE-MH4 Note) 1. All cutters are supplied without inserts. Clamp Screw Recommended Torque (N・m) 2. Please refer page B009 for recommended tightening torque. DSW307H 1.8 ● Standard stock items □: Stock in Japan ○: Soon to be deleted B127
