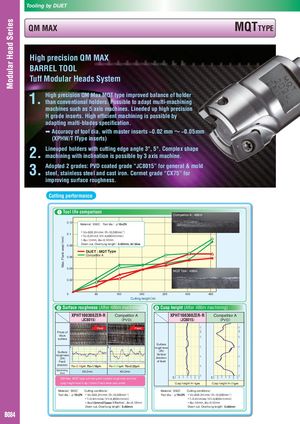

Tooling by DIJET QM MAX MQTTYPE High precision QM MAX BARREL TOOL Tuff Modular Heads System 1. High precision QM Max MQT type improved balance of holder than conventional holders. Possible to adapt multi-machining machines such as 5 axis machines. Lineded up high precision H grade inserts. High efficient machining is possible by adapting malti-blades specification. ➡ Accuracy of tool dia. with master inserts −0.02 mm 〜 −0.05mm (XPHW/T tType inserts) 2. Lineuped holders with cutting edge angle 3°, 5°. Complex shape machining with inclination is possible by 3 axis machine. 3. Adopted 2 grades: PVD coated grade “JC8015” for general & mold steel, stainless steel and cast iron. Cermet grade “CX75” for improving surface roughness. Cutting performance  Tool life comparison Competitor A：486m Material：S50C Tool dia.：φ 0.12 Vc=603.2 /min（n=12,000min-1） 0.1 f z=0.2 m/t（V f=4,800m /min） Max. Flank wear（mm） ap=1.5mm, ae=0.12mm 0.08 Down cut, Overhung length： DIJET : MQT Type Competitor t A 0.06 0.04 MQT Type：486m 0.02 0 80 160 240 320 400 480 Cutting length（m）  Surface roughness (After 486m machining)  Cusp height (After 486m machining) XPHT100308ZER-R Competitor A XPHT100308ZER-R Competitor A JC8015 PVD) JC8015 PVD 2.5 2.5 Feed Feed [mm] [mm] Photo of Work 2.0 2.0 surface Surface 1.5 1.5 3.0 3.0 2.0 2.0 roughness Surface 1.0 1.0 2N roughness 0.0 0.0 Vertical （2N） 1.0 1.0 1.0 1.0 2.0 2.0 direction Feed 3.0 0.0 0.5 1.0 1.5 2.0 2.5 [mm] 3.0 0.0 0.5 1.0 1.5 2.0 2.5 [mm] of feed direction Ra=0.19 0.5 0.5 Ra=0.44 Machining 101.2min 101.2min time 0.0 0.0 15.0 10.0 5.0 0.0 –5.0 –10.0 –15.0 15.0 10.0 5.0 0.0 –5.0 –10.0 –15.0 QM Max MQT type achived good surface roughness and low cusp height even if ap=1.5mm.Frank wear also small. Cusp height H=4 Cusp height H=26 Material：S50C Cutting conditions： Material：S50C Cutting conditions： Tool dia.：φ Vc=603.2 /min（n=12,000min-1） Tool dia.：φ Vc=603.2 /min（n=12,000min-1） f =0.4 m/rev（V f=4,800m /min） f =0.4 m/rev（V f=4,800m /min） ap （Effective）, ae=0.12mm ap=1.5mm, ae=0.12mm Down cut, Overhung length： Down cut, Overhung length： B084
