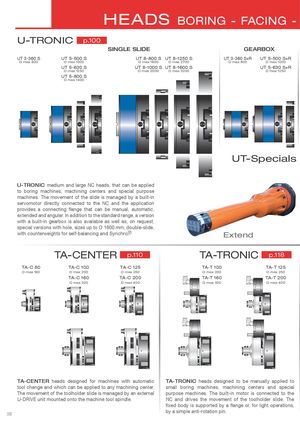

U-TRONICHEADS BORING - FACING - U-TRONIC p.100 SINGLE SLIDE GEARBOX UT 3-360 S UT 5-500 S UT 8-800 S UT 8-1250 S UT 3-360 S+R UT 5-500 S+R Ø max 800 Ø max 1000 Ø max 1600 Ø max 2700 Ø max 800 Ø max 1000 UT 5-630 S UT 8-1000 S UT 8-1600 S UT 5-630 S+R Ø max 1250 Ø max 2000 Ø max 3200 Ø max 1250 UT 5-800 S Ø max 1400 UT-Specials U-TRONIC medium and large NC heads, that can be applied to boring machines, machining centers and special purpose machines. The movement of the slide is managed by a built-in servomotor directly connected to the NC and the application SURYLGHV D FRQQHFWLQJ ĻDQJH WKDW FDQ EH PDQXDO DXWRPDWLF extended and angular. In addition to the standard range, a version with a built-in gearbox is also available as well as, on request, special versions with hole, sizes up to Ø 1600 mm, double-slide, with counterweights for self-balancing and Synchro.P Extend TA-CENTER p.110 TA-TRONIC p.118 TA-C 80 TA-C 100 TA-C 125 TA-T 100 TA-T 125 Ø max 160 Ø max 200 Ø max 250 Ø max 200 Ø max 250 TA-C 160 TA-C 200 TA-T 160 TA-T 200 Ø max 320 Ø max 400 Ø max 320 Ø max 400 TA-CENTER heads designed for machines with automatic TA-TRONIC heads designed to be manually applied to tool change and which can be applied to any machining center. small boring machines, machining centers and special The movement of the toolholder slide is managed by an external purpose machines. The built-in motor is connected to the U-DRIVE unit mounted onto the machine tool spindle. NC and drives the movement of the toolholder slide. The ĺ[HG ERG\ LV VXSSRUWHG E\ D ĻDQJH RU IRU OLJKW RSHUDWLRQV 98 by a simple anti-rotation pin.
