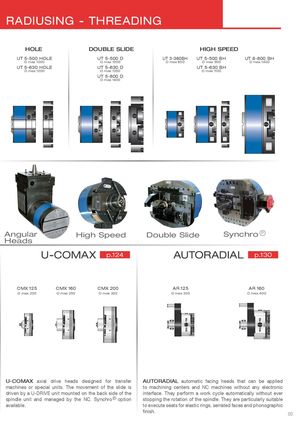

RADIUSING - THREADING HOLE DOUBLE SLIDE HIGH SPEED UT 5-500 HOLE UT 5-500 D UT 3-360BH UT 5-500 BH UT 8-800 BH Ø max 1000 Ø max 1000 Ø max 600 Ø max 900 Ø max 1400 UT 5-630 HOLE UT 5-630 D UT 5-630 BH Ø max 1200 Ø max 1200 Ø max 1100 UT 5-800 D Ø max 1400 Angular High Speed Double Slide Synchro P Heads U-COMAX p.124 AUTORADIAL p.130 CMX 125 CMX 160 CMX 200 AR 125 AR 160 Ø max 200 Ø max 250 Ø max 320 Ø max 320 Ø max 400 U-COMAX axial drive heads designed for transfer AUTORADIAL automatic facing heads that can be applied machines or special units. The movement of the slide is to machining centers and NC machines without any electronic driven by a U-DRIVE unit mounted on the back side of the interface. They perform a work cycle automatically without ever spindle unit and managed by the NC. Synchro P option stopping the rotation of the spindle. They are particularly suitable available. to execute seats for elastic rings, serrated faces and phonographic ĺQLVK 99
