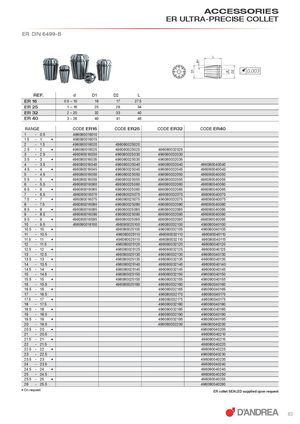

Общий каталог D'andrea 2022 - страница 84

ACCESSORIES ER ULTRA-PRECISE COLLET ER DIN 6499-B REF. d D1 D2 L ER 16 0.5 ~ 10 16 17 27.5 ER 25 1 ~ 16 25 26 34 ER 32 2 ~ 20 32 33 40 ER 40 3 ~ 26 40 41 46 RANGE CODE ER16 CODE ER25 CODE ER32 CODE ER40 1 - 0.5 496080016010 1.5 - 1 • 496080016015 2 - 1.5 496080016020 496080025020 2.5 - 2 • 496080016025 496080025025 496080032025 3 - 2.5 496080016030 496080025030 496080032030 3.5 - 3 • 496080016035 496080025035 496080032035 4 - 3.5 496080016040 496080025040 496080032040 496080040040 4.5 - 4 • 496080016045 496080025045 496080032045 496080040045 5 - 4.5 496080016050 496080025050 496080032050 496080040050 5.5 - 5 • 496080016055 496080025055 496080032055 496080040055 6 - 5.5 496080016060 496080025060 496080032060 496080040060 6.5 - 6 • 496080016065 496080025065 496080032065 496080040065 7 - 6.5 496080016070 496080025070 496080032070 496080040070 7.5 - 7 • 496080016075 496080025075 496080032075 496080040075 8 - 7.5 496080016080 496080025080 496080032080 496080040080 8.5 - 8 • 496080016085 496080025085 496080032085 496080040085 9 - 8.5 496080016090 496080025090 496080032090 496080040090 9.5 - 9 • 496080016095 496080025095 496080032095 496080040095 10 - 9.5 496080016100 496080025100 496080032100 496080040100 10.5 - 10 • 496080025105 496080032105 496080040105 11 - 10.5 496080025110 496080032110 496080040110 11.5 - 11 • 496080025115 496080032115 496080040115 12 - 11.5 496080025120 496080032120 496080040120 12.5 - 12 • 496080025125 496080032125 496080040125 13 - 12.5 496080025130 496080032130 496080040130 13.5 - 13 • 496080025135 496080032135 496080040135 14 - 13.5 496080025140 496080032140 496080040140 14.5 - 14 • 496080025145 496080032145 496080040145 15 - 14.5 496080025150 496080032150 496080040150 15.5 - 15 • 496080025155 496080032155 496080040155 16 - 15.5 496080025160 496080032160 496080040160 16.5 - 16 • 496080032165 496080040165 17 - 16.5 496080032170 496080040170 17.5 - 17 • 496080032175 496080040175 18 - 17.5 496080032180 496080040180 18.5 - 18 • 496080032185 496080040185 19 - 18.5 496080032190 496080040190 19.5 - 19 • 496080032195 496080040195 20 - 19.5 496080032200 496080040200 20.5 - 20 • 496080040205 21 - 20.5 496080040210 21.5 - 21 • 496080040215 22 - 21.5 496080040220 22.5 - 22 • 496080040225 23 - 22.5 496080040230 23.5 - 23 • 496080040235 24 - 23.5 496080040240 24.5 - 24 • 496080040245 25 - 24.5 496080040250 25.5 - 25 • 496080040255 26 - 25.5 496080040260 • On request ER collet SEALED supplied upon request 83
