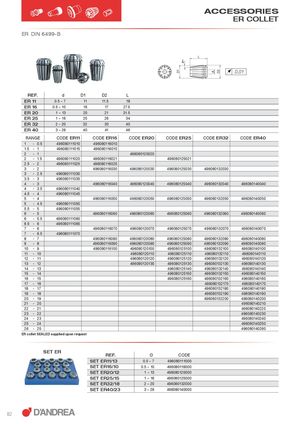

ACCESSORIES ER COLLET ER DIN 6499-B REF. d D1 D2 L ER 11 0.5 ~ 7 11 11.5 18 ER 16 0.5 ~ 10 16 17 27.5 ER 20 1 ~ 13 20 21 31.5 ER 25 1 ~ 16 25 26 34 ER 32 2 ~ 20 32 33 40 ER 40 3 ~ 26 40 41 46 RANGE CODE ER11 CODE ER16 CODE ER20 CODE ER25 CODE ER32 CODE ER40 1 - 0.5 496080111010 496080116010 1.5 - 1 496080111015 496080116015 2 - 1 496080120020 2 - 1.5 496080111020 496080116021 496080125021 2.5 - 2 496080111025 496080116025 3 - 2 496080116030 496080120030 496080125030 496080132030 3 - 2.5 496080111030 3.5 - 3 496080111035 4 - 3 496080116040 496080120040 496080125040 496080132040 496080140040 4 - 3.5 496080111040 4.5 - 4 496080111045 5 - 4 496080116050 496080120050 496080125050 496080132050 496080140050 5 - 4.5 496080111050 5.5 - 5 496080111055 6 - 5 496080116060 496080120060 496080125060 496080132060 496080140060 6 - 5.5 496080111060 6.5 - 6 496080111065 7 - 6 496080116070 496080120070 496080125070 496080132070 496080140070 7 - 6.5 496080111070 8 - 7 496080116080 496080120080 496080125080 496080132080 496080140080 9 - 8 496080116090 496080120090 496080125090 496080132090 496080140090 10 - 9 496080116100 496080120100 496080125100 496080132100 496080140100 11 - 10 496080120110 496080125110 496080132110 496080140110 12 - 11 496080120120 496080125120 496080132120 496080140120 13 - 12 496080120130 496080125130 496080132130 496080140130 14 - 13 496080125140 496080132140 496080140140 15 - 14 496080125150 496080132150 496080140150 16 - 15 496080125160 496080132160 496080140160 17 - 16 496080132170 496080140170 18 - 17 496080132180 496080140180 19 - 18 496080132190 496080140190 20 - 19 496080132200 496080140200 21 - 20 496080140210 22 - 21 496080140220 23 - 22 496080140230 24 - 23 496080140240 25 - 24 496080140250 26 - 25 496080140260 ER collet SEALED supplied upon request SET ER REF. Ø CODE SET ER11/13 0.5 ~ 7 496080111000 SET ER16/10 0.5 ~ 10 496080116000 SET ER20/12 1 ~ 13 496080120000 SET ER25/15 1 ~ 16 496080125000 SET ER32/18 2 ~ 20 496080132000 SET ER40/23 3 ~ 26 496080140000 82
