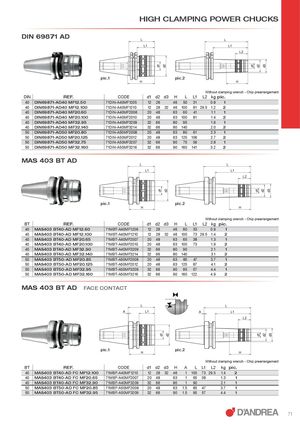

HIGH CLAMPING POWER CHUCKS DIN 69871 AD pic.1 pic.2 Without clamping wrench - Chip prearrangement DIN REF. CODE d1 d2 d3 H L L1 L2 kg pic. 40 DIN69871-AD40 MF12.50 71DIN-A40MF1205 12 28 46 50 31 0.8 1 40 DIN69871-AD40 MF12.100 71DIN-A40MF1210 12 28 32 46 100 81 29.5 1.2 2 40 DIN69871-AD40 MF20.60 71DIN-A40MF2006 20 48 63 60 41 1.1 1 40 DIN69871-AD40 MF20.100 71DIN-A40MF2010 20 48 63 100 81 1.4 2 40 DIN69871-AD40 MF32.95 71DIN-A40MF3209 32 66 80 95 1.6 1 40 DIN69871-AD40 MF32.140 71DIN-A40MF3214 32 66 80 140 2.0 2 50 DIN69871-AD50 MF20.80 71DIN-A50MF2008 20 48 63 80 61 2.3 1 50 DIN69871-AD50 MF20.125 71DIN-A50MF2012 20 48 63 125 106 2.7 2 50 DIN69871-AD50 MF32.75 71DIN-A50MF3207 32 66 90 75 56 2.8 1 50 DIN69871-AD50 MF32.160 71DIN-A50MF3216 32 66 90 160 141 3.2 2 MAS 403 BT AD pic.1 pic.2 Without clamping wrench - Chip prearrangement BT REF. CODE d1 d2 d3 H L L1 L2 kg pic. 40 MAS403 BT40-AD MF12.60 71MBT-A40MF1206 12 28 46 60 33 0.9 1 40 MAS403 BT40-AD MF12.100 71MBT-A40MF1210 12 28 32 46 100 73 29.5 1.4 2 40 MAS403 BT40-AD MF20.65 71MBT-A40MF2007 20 48 63 65 38 1.3 1 40 MAS403 BT40-AD MF20.100 71MBT-A40MF2010 20 48 63 100 73 1.9 2 40 MAS403 BT40-AD MF32.90 71MBT-A40MF3209 32 66 80 90 2.1 1 40 MAS403 BT40-AD MF32.140 71MBT-A40MF3214 32 66 80 140 3.1 2 50 MAS403 BT50-AD MF20.85 71MBT-A50MF2008 20 48 63 85 47 3.7 1 50 MAS403 BT50-AD MF20.125 71MBT-A50MF2012 20 48 63 125 87 4.1 2 50 MAS403 BT50-AD MF32.95 71MBT-A50MF3209 32 66 90 95 57 4.4 1 50 MAS403 BT50-AD MF32.160 71MBT-A50MF3216 32 66 90 160 122 4.9 2 MAS 403 BT AD FACE CONTACT pic.1 pic.2 Without clamping wrench - Chip prearrangement BT REF. CODE d1 d2 d3 H A L L1 L2 kg pic. 40 MAS403 BT40-AD FC MF12.100 71MBF-A40MF1210 12 28 32 46 1 100 73 29.5 1.4 2 40 MAS403 BT40-AD FC MF20.65 71MBF-A40MF2007 20 48 63 1 65 38 1.3 1 40 MAS403 BT40-AD FC MF32.90 71MBF-A40MF3209 32 66 80 1 90 2.1 1 50 MAS403 BT50-AD FC MF20.85 71MBF-A50MF2008 20 48 63 1.5 85 47 3.7 1 50 MAS403 BT50-AD FC MF32.95 71MBF-A50MF3209 32 66 90 1.5 95 57 4.4 1 71
