Общий каталог D'andrea 2022 - страница 71

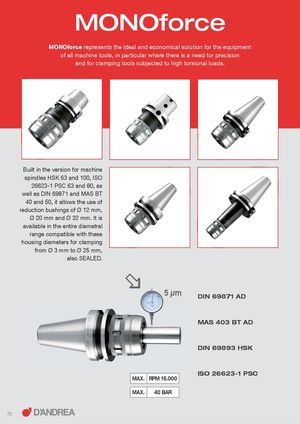

MONOforce MONOforce represents the ideal and economical solution for the equipment of all machine tools, in particular where there is a need for precision and for clamping tools subjected to high torsional loads. Built in the version for machine spindles HSK 63 and 100, ISO 26623-1 PSC 63 and 80, as well as DIN 69871 and MAS BT 40 and 50, it allows the use of reduction bushings of Ø 12 mm, Ø 20 mm and Ø 32 mm. It is available in the entire diametral range compatible with these housing diameters for clamping from Ø 3 mm to Ø 25 mm, also SEALED. 5 —m DIN 69871 AD MAS 403 BT AD DIN 69893 HSK ISO 26623-1 PSC MAX. RPM 15.000 MAX. 40 BAR 70
