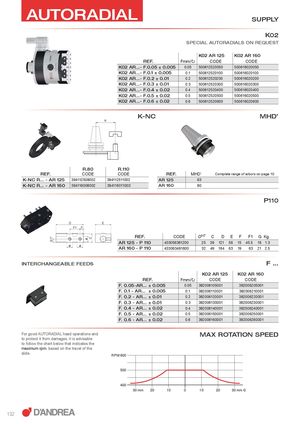

AUTORADIAL SUPPLY K02 SPECIAL AUTORADIALS ON REQUEST K02 AR 125 K02 AR 160 REF. Fmm/3 CODE CODE K02 AR...- F.0.05 ± 0.005 0.05 500612520050 500616020050 K02 AR...- F.0.1 ± 0.005 0.1 500612520100 500616020100 K02 AR...- F.0.2 ± 0.01 0.2 500612520200 500616020200 K02 AR...- F.0.3 ± 0.01 0.3 500612520300 500616020300 K02 AR...- F.0.4 ± 0.02 0.4 500612520400 500616020400 K02 AR...- F.0.5 ± 0.02 0.5 500612520500 500616020500 K02 AR...- F.0.6 ± 0.02 0.6 500612520600 500616020600 K-NC MHD’ R.80 R.110 REF. CODE CODE REF. MHD’ Complete range of arbors on page 10 K-NC R... - AR 125 394112508002 394112511002 AR 125 63 K-NC R... - AR 160 394116008002 394116011003 AR 160 80 P110 REF. CODE ØH7 C D E F F1 G Kg. AR 125 - P 110 433056381200 25 39 121 56 15 45.5 16 1.3 AR 160 - P 110 433063481600 32 49 164 63 19 63 21 2.5 INTERCHANGEABLE FEEDS F ... K02 AR 125 K02 AR 160 REF. Fmm/3 CODE CODE F. 0.05-AR... ± 0.005 0.05 382006105001 382006205001 F. 0.1 - AR... ± 0.005 0.1 382006110001 382006210001 F. 0.2 - AR... ± 0.01 0.2 382006120001 382006220001 F. 0.3 - AR... ± 0.01 0.3 382006130001 382006230001 F. 0.4 - AR... ± 0.02 0.4 382006140001 382006240001 F. 0.5 - AR... ± 0.02 0.5 382006150001 382006250001 F. 0.6 - AR... ± 0.02 0.6 382006160001 382006260001 For good AUTORADIAL head operations and MAX ROTATION SPEED to protect it from damages, it is advisable to follow the chart below that indicates the maximum rpm, based on the travel of the slide. RPM 600 500 400 30 mm 20 10 0 10 20 30 mm C 132
