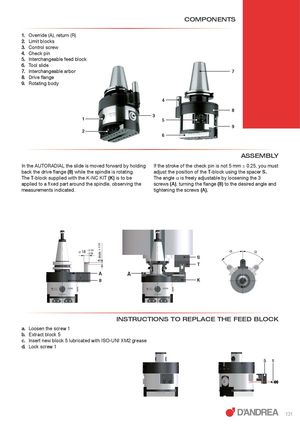

COMPONENTS 1. Override (A), return (R) 2. Limit blocks 3. Control screw 4. Check pin 5. Interchangeable feed block 6. Tool slide 7. Interchangeable arbor 7 8. 'ULYHĻDQJH 9. Rotating body 4 8 1 3 5 9 2 6 ASSEMBLY In the AUTORADIAL the slide is moved forward by holding If the stroke of the check pin is not 5 mm ± 0.25, you must back the drive flange (8) while the spindle is rotating. adjust the position of the T-block using the spacer S. The T-block supplied with the K-NC KIT (K) is to be The angle D is freely adjustable by loosening the 3 applied to a fixed part around the spindle, observing the screws (A), turning the flange (8) to the desired angle and measurements indicated. tightening the screws (A). Ø 18 - 0.03- 0.05 D D S T A A 8 K INSTRUCTIONS TO REPLACE THE FEED BLOCK a. Loosen the screw 1 b. Extract block 5 c. Insert new block 5 lubricated with ISO-UNI XM2 grease d. Lock screw 1 5 1 131 5 mm ± 0.25
