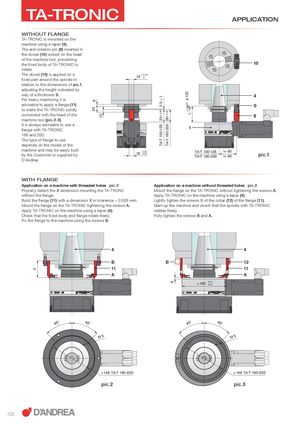

S20 10 0.5 ~ 133 ± 0.05TA-T 100-125 26 ± 0.05TA-T 160-200 6 L ) p.122 TA-TRONIC APPLICATION WITHOUT FLANGE TA-TRONIC is mounted on the machine using a taper (4). The anit-rotation pin (8) inserted in the dowel (10) locked on the head of the machine tool, preventing the fixed body of TA-TRONIC to 10 rotate. The dowel (10) is applied on afixed part around the spindle in 18 + 0.03 0 relation to the dimensions of pic.1, adjusting the height indicated by way of a thickness S. 4 For heavy machining it is advisable to apply a flange (11) S to make the TA-TRONIC solidly connected with the head of the 8 machine tool (pic.2-3). It is always advisable to use aflange with TA-TRONIC 1 160 and 200. The type of flange to use depends on the model of the machine and may be easily builtby the Customer or supplied by 18 - 0.02- 0.04 TA-T 100-125 I= 60TA-T 160-200I= 90pic.1 D’Andrea. WITH FLANGE Application on a machine with threaded holes pic.2 Application on a machine without threaded holes pic.3 Properly detect the X dimension mounting the TA-TRONC Mount the flange on the TA-TRONIC without tightening the screws A. without the flange. Apply TA-TRONIC on the machine using a taper (4). Build the flange (11) with a dimension XLQWROHUDQFH}PP Lightly tighten the screws B of the collar (12) of the flange (11). Mount the flange on the TA-TRONIC tightening the screws A. Start up the machine and check that the spindle with TA-TRONIC Apply TA-TRONIC on the machine using a taper (4). rotates freely. Check that the fixed body and flange rotate freely. Fully tighten the screws B and A. Fix the flange to the machine using the screws B. 4 4 B B 12 11 11 A A Ø 160 - 0.01 - 0.03 45° 45° 45° 45° M5 M5 Ø 148 TA-T 160-200 Ø 148 TA-T 160-200 pic.2 pic.3 120 X
