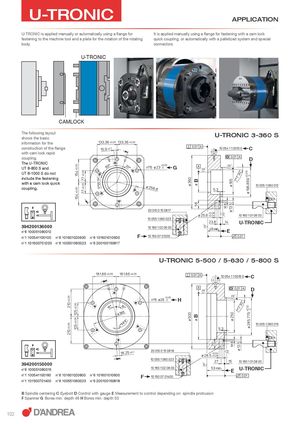

BB U-TRONIC APPLICATION U-TRONIC is applied manually or automatically using a flange for It is applied manually using a flange for fastening with a cam lock fastening to the machine tool and a plate for the rotation of the rotating quick coupling, or automatically with a palletized system and special body. connectors. U-TRONIC CAMLOCK The following layoutshows the basic U-TRONIC 3-360 S information for the construction of the flange C with cam lock rapid coupling. D The U-TRONIC UT 8-800 S and G UT 8-1000 S do not include the fastening with a cam lock quick coupling. U-TRONIC 394200136000 n°6 100051080012 E n°1 100541100100 n°6 101601020600 n°6 101601010600 F n°1 101500701200 n°6 100551060023 n°6 200100150817 U-TRONIC 5-500 / 5-630 / 5-800 S C D H 394200150000 n°6 100051080015 E U-TRONIC n°1 100541100160 n°6 101601020800 n°6 101601010600 F n°1 101500701400 n°6 100551060023 n°6 200100150818 B Spindle centering C Eyebolt D Control with gauge E Measurement to control depending on spindle protrusion F Spanner G Bores min. depth 46 H Bores min. depth 53 102
