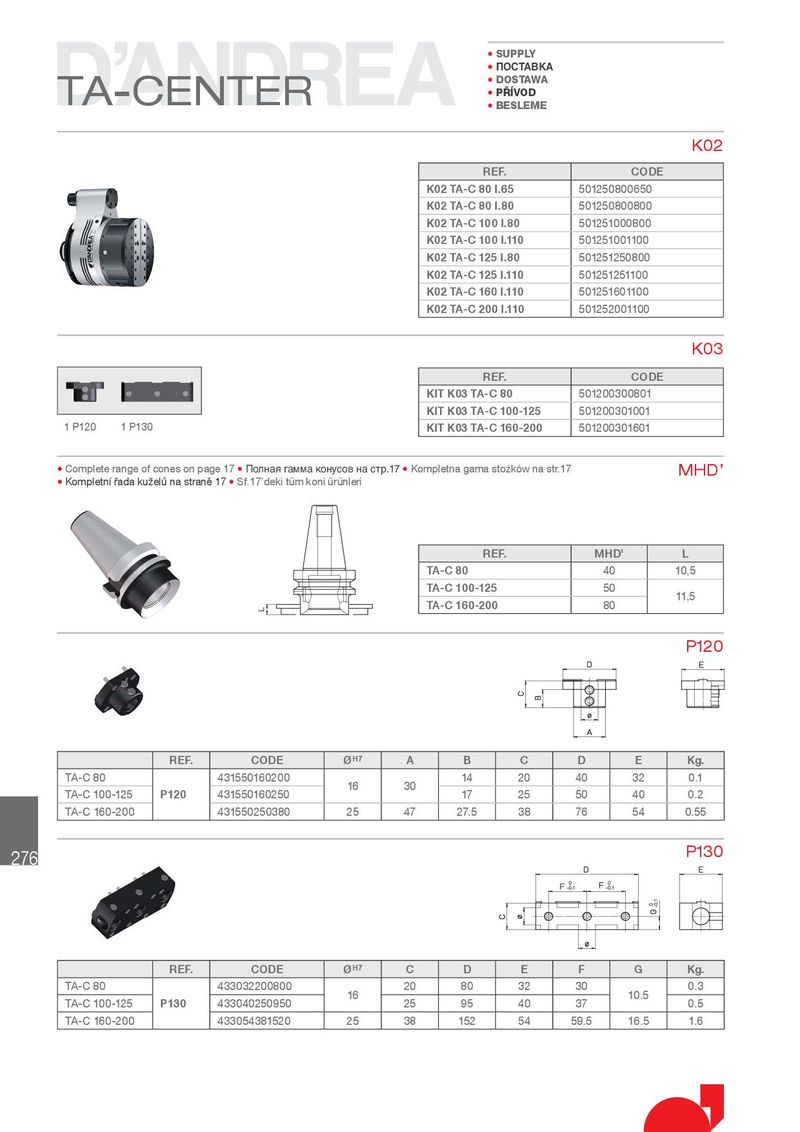

Общий каталог D'andrea 2022
TA-CENTER DOSTAWA
- BESLEME
REF. CODE K02 TA-C 80 I.65 501250800650 K02 TA-C 80 I.80 501250800800 K02 TA-C 100 I.80 501251000800 K02 TA-C 100 I.110 501251001100 K02 TA-C 125 I.80 501251250800 K02 TA-C 125 I.110 501251251100 K02 TA-C 160 I.110 501251601100 K02 TA-C 200 I.110 501252001100
REF. CODE KIT K03 TA-C 80 501200300801 KIT K03 TA-C 100-125 501200301001
3 3 KIT K03 TA-C 160-200 501200301601
- Complete range of cones on page 17
- Полная гамма конусов на стр.17 •.RPSOHWQDJDPDVWRƅNÐZQDVWU
•.RPSOHWQÊŦDGDNX{HOƀQDVWUDQĵ•6IpGHNLWÙPNRQLÙUÙQOHUL
K02
K03
MHD’
| REF. | MHD’ | L | |
| TA-C 80 | 40 | 10,5 |
TA-C 100-125 50 11,5 TA-C 160-200 80
P120
| REF. | CODE | ØH7 | A | B | C | D | E | Kg. | ||
| TA-C 80 | 431550160200 | 14 | 20 | 40 | 32 | 0.1 |
16 30
| TA-C 100-125 | P120 | 431550160250 | 17 | 25 | 50 | 40 | 0.2 | ||
| TA-C 160-200 | 431550250380 | 25 | 47 | 27.5 | 38 | 76 | 54 | 0.55 |
276 P130
| REF. | CODE | ØH7 | C | D | E | F | G | Kg. | ||
| TA-C 80 | 433032200800 | 20 | 80 | 32 | 30 | 0.3 |
16 10.5
| TA-C 100-125 | P130 | 433040250950 | 25 | 95 | 40 | 37 | 0.5 | ||
| TA-C 160-200 | 433054381520 | 25 | 38 | 152 | 54 | 59.5 | 16.5 | 1.6 |
