Общий каталог D'andrea 2022

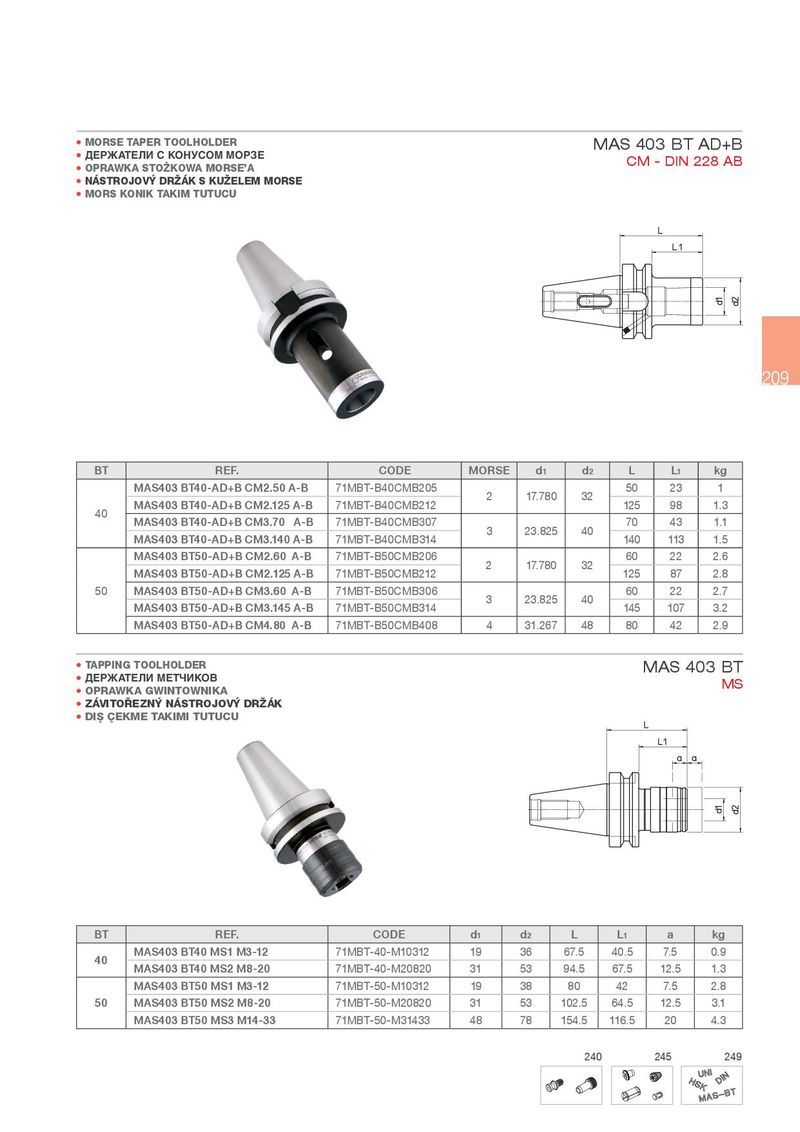

- MORSE TAPER TOOLHOLDER MAS 403 BT AD+B
- ДЕРЖАТЕЛИ С КОНУСОМ МОРЗЕ CM - DIN 228 AB
- OPRAWKA STO¾KOWA MORSE’A
- NÁSTROJOV¹ DR½ÁK S KU½ELEM MORSE
- MORS KONIK TAKIM TUTUCU
209
| BT REF. | CODE | MORSE | d1 | d2 | L | L1 | kg |
| MAS403 BT40-AD+B CM2.50 A-B | 71MBT-B40CMB205 | 2 | 17780 | 32 | 50 | 23 | 1 |
| 40 MAS403 BT40-AD+B CM2.125 A-B | 71MBT-B40CMB212 | . | 125 | 98 | 1.3 | ||
| MAS403 BT40-AD+B CM3.70 A-B | 71MBT-B40CMB307 | 3 | 23825 | 40 | 70 | 43 | 1.1 |
| MAS403 BT40-AD+B CM3.140 A-B | 71MBT-B40CMB314 | . | 140 | 113 | 1.5 | ||
| MAS403 BT50-AD+B CM2.60 A-B | 71MBT-B50CMB206 | 2 | 17780 | 32 | 60 | 22 | 2.6 |
| MAS403 BT50-AD+B CM2.125 A-B | 71MBT-B50CMB212 | . | 125 | 87 | 2.8 | ||
| 50 MAS403 BT50-AD+B CM3.60 A-B | 71MBT-B50CMB306 | 3 | 2382 | 40 | 60 | 22 | 2.7 |
| MAS403 BT50-AD+B CM3.145 A-B | 71MBT-B50CMB314 | .5 | 145 | 107 | 3.2 | ||
| MAS403 BT50-AD+B CM4.80 A-B | 71MBT-B50CMB408 | 4 | 31.267 | 48 | 80 | 42 | 2.9 |
- TAPPING TOOLHOLDER MAS 403 BT
- ДЕРЖАТЕЛИ МЕТЧИКОВ MS
- OPRAWKA GWINTOWNIKA
- ZÁVITO¢EZN¹ NÁSTROJOV¹ DR½ÁK
- DI§ qEKME TAKIMI TUTUCU
| BT | REF. | CODE | d1 | d2 | L | L1 | a | kg |
| 40 | MAS403 BT40 MS1 M3-12 | 71MBT-40-M10312 | 19 | 36 | 67.5 | 40.5 | 7.5 | 0.9 |
| MAS403 BT40 MS2 M8-20 | 71MBT-40-M20820 | 31 | 53 | 94.5 | 67.5 | 12.5 | 1.3 | |
| MAS403 BT50 MS1 M3-12 | 71MBT-50-M10312 | 19 | 38 | 80 | 42 | 7.5 | 2.8 | |
| 50 | MAS403 BT50 MS2 M8-20 | 71MBT-50-M20820 | 31 | 53 | 102.5 | 64.5 | 12.5 | 3.1 |
| MAS403 BT50 MS3 M14-33 | 71MBT-50-M31433 | 48 | 78 | 154.5 | 116.5 | 20 | 4.3 |
